Fruit and vegetable crushing equipment

Food Engineering

Fruit and vegetable crushing equipment

Shanghai Triowin Machinery’s industrial fruit and vegetable crushing&pulping machine comes with different pre-treatment processes depending on characteristics of different fruits. Not only possesses crushing, squeezing, pulping, refining, but special fruits also require pre-cooking, enzyme inactivation, desteming, peeling, core-removing, etc.. Providing perfect solution for fruit and vegetable pre-treatment process, and satisfy multi-fruits processing requirements.

Contact Us

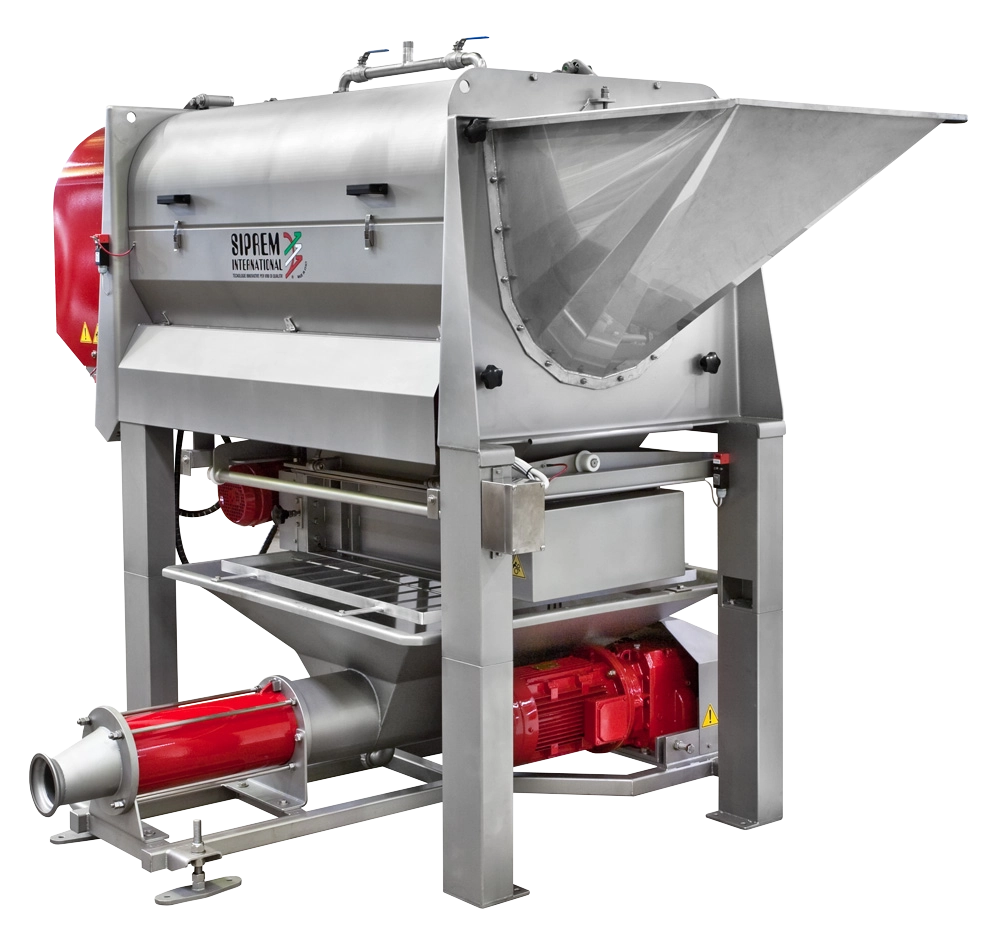

Destemming crusher

▪ For destemming and crushing grapes, different types of equipment are provided according to different processing capacity (5-60T/H), suitable for different capacity requirements;

▪ The equipment themes are made of 304 stainless steel;
▪ The crushing roller is made of food-grade rubber, which can be directly adjusted externally;
▪ The feeding spiral realizes the uniform distribution of materials in the equipment;
▪ The speed of the equipment can be stepless adjusted according to the actual needs;
▪ It can be perfectly integrated with rotary lobe pumps, single-stage progressive cavity pumps, etc.

Technical parameters

Model	ALFA5	ALFA12	ALFA16	ALFA25	ALFA30	ALF60
Capacity(t/h)	4-5	7-9	12-16	20-25	25-30	55-65
Power (kW)	1.87	1.87	2.62	5.62	4	7.5
Weight (kg)	200	285	390	650	800	1000

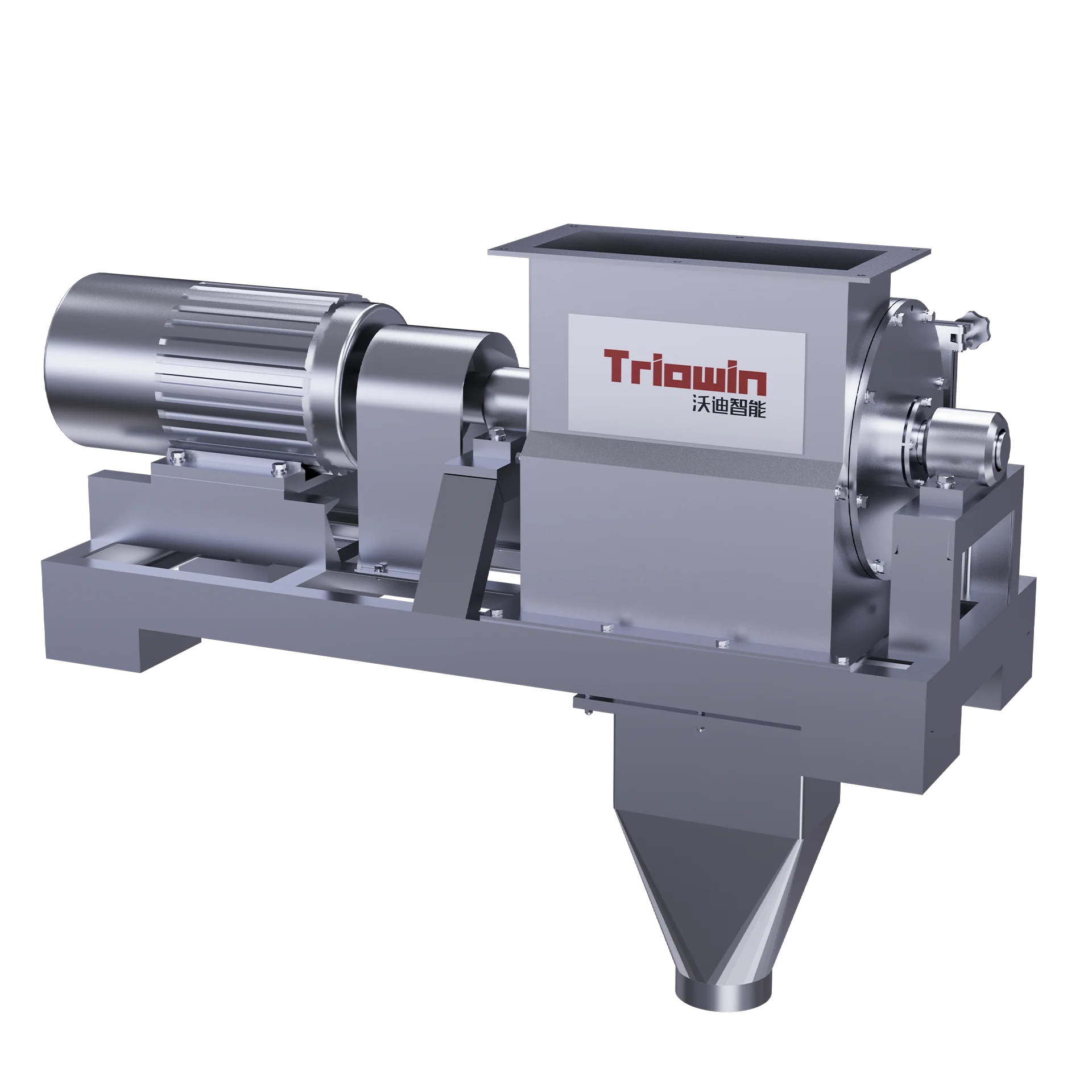

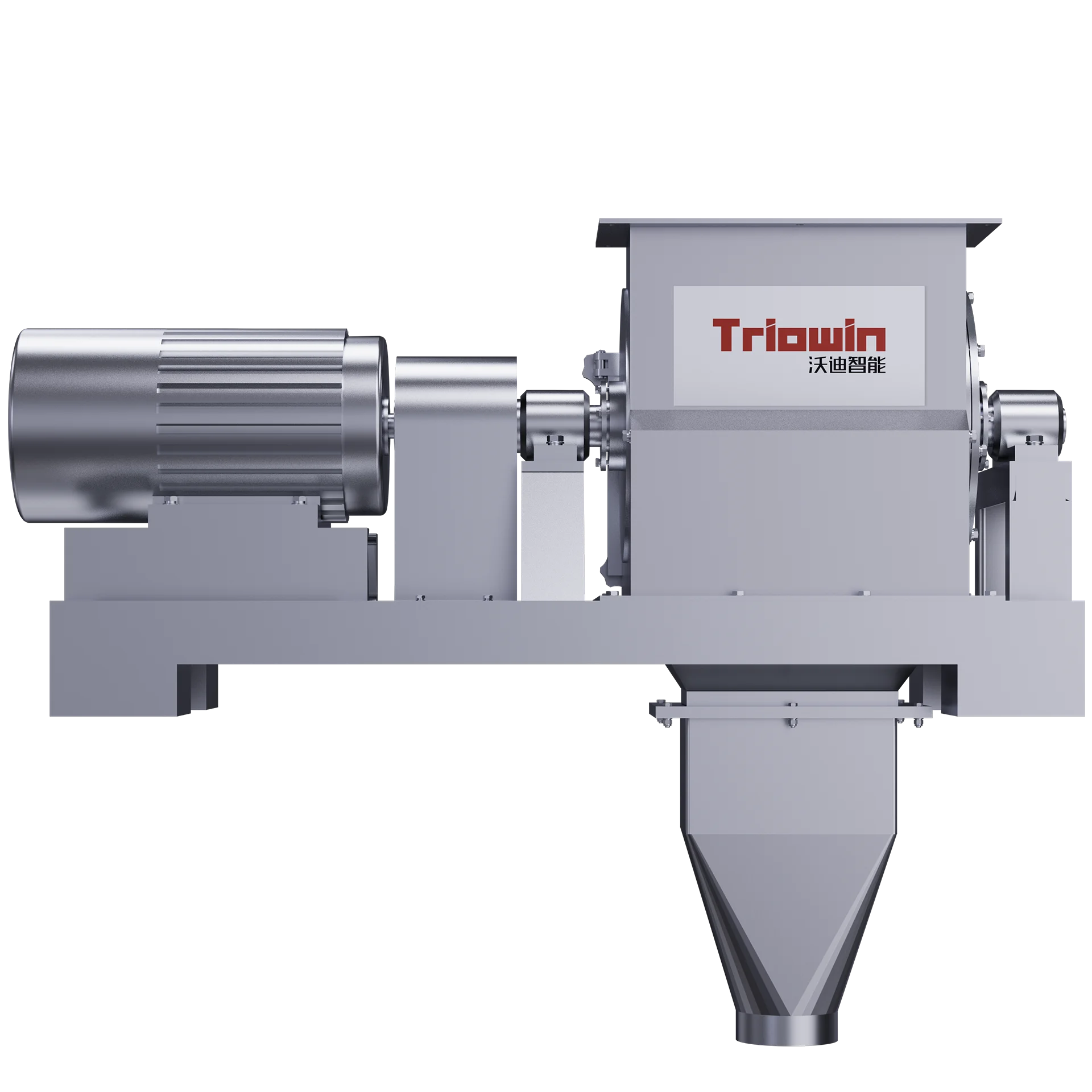

Hammer type, squirrel cage type

It is used for crushing fruits and vegetables such as apples, pears, kiwifruit, tomatoes, carrots, etc

Technical parameters

Model	TW4A5	TW4A10	TW4A20	TW4A30
Capacity(t/h)	2	10	20	30
Power (kW)	2.2	11	18.5	37
Device Dimensions (mm)	1090×571×1500	1740×663×789	2045×700×789	2100×700×789
