According to the solid content, particle size and viscosity of the processed materials, it is divided into horizontal spiral centrifuges, disc centrifuges, vacuum rotary drum filters, etc.
According to the solid content, particle size and viscosity of the processed materials, it is divided into horizontal spiral centrifuges, disc centrifuges, vacuum rotary drum filters, etc.
Model |
GHT12P |
GHT32P |
Inner Diameter(mm) |
250 |
357 |
Length (mm) |
863 |
1597 |
Screw diameter(mm) |
248 |
355 |
Speed (rpm) |
0-7000 |
0-4300 |
Water flux (m2/h) |
6 |
20 |
Model |
SE111 |
SE201 |
SE301 |
SE401 |
SE501 |
SE601 |
Speed (rv/min) |
11000 |
8600 |
6500 |
6500 |
5000 |
5000 |
Water flux (m³/h) |
5 |
13 |
25 |
30 |
50 |
90 |
Sludge Chamber Volume (liters) |
2 |
5 |
10.5 |
10.5 |
20 |
28 |
Power (kW) |
4+5.5 |
9+11 |
18.5+30 |
22+30 |
30+45 |
45+75 |
Technical parameters

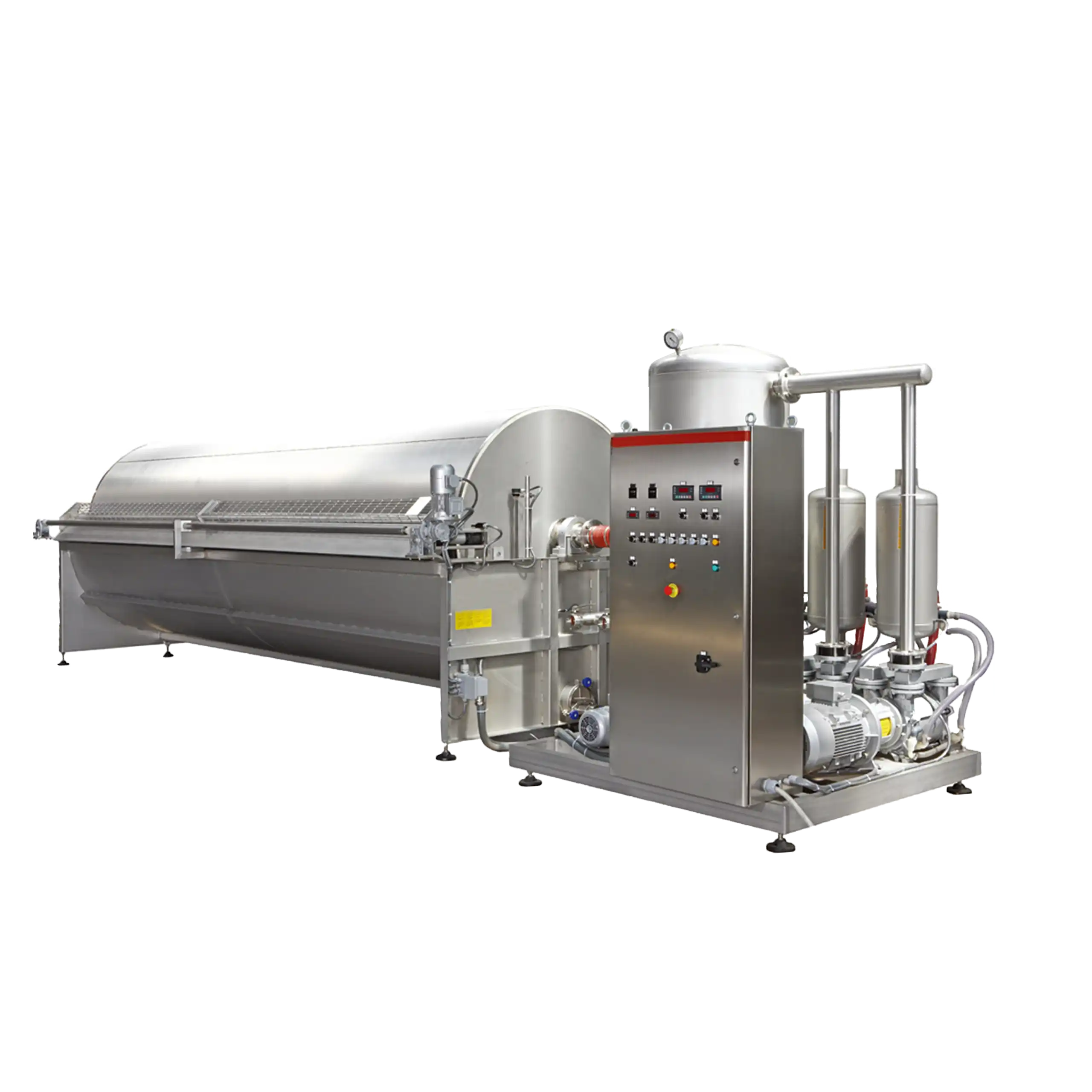

Model |
TAYLO-LUX10 |
TAYLO-LUX15 |
|
diameter |
1335 |
1669 |
|
length |
2500 |
2900 |
|
Filtration area |
10.5 |
15.2 |
|
Bowl speed |
0.3-5.2 |
0.3-5.2 |
|
Bowl immersion section |
utmost |
42% |
42% |
least |
20% |
20% |

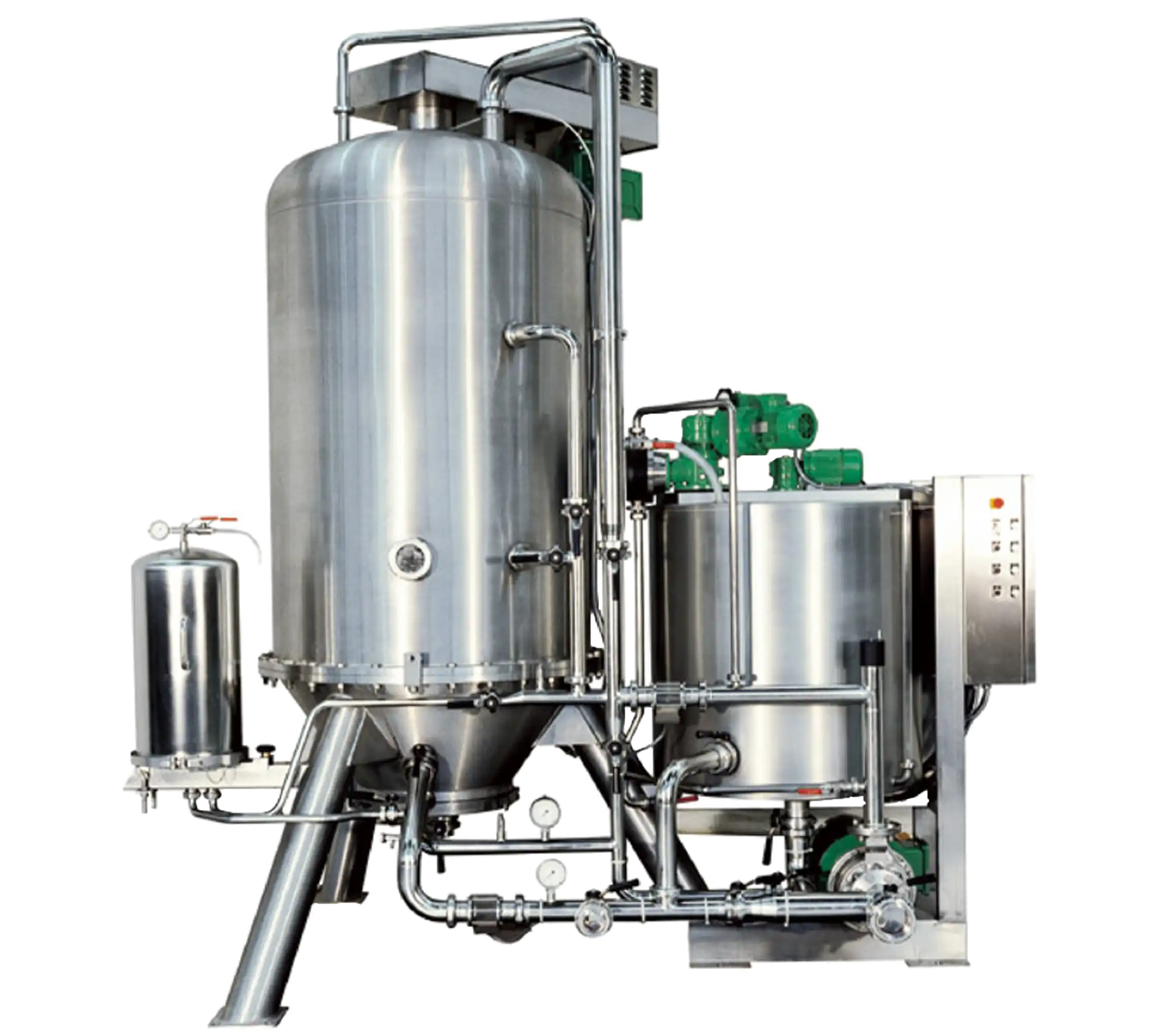

▪ Diatomaceous earth disc filter is currently recognized as the most complete diatomaceous earth filter in the world
▪ The Padovan filter is made of 304 stainless steel and has a filtration area of 2 m² to 42 m²
▪ With residual liquid filter
▪ Movable wheels can be installed
▪ The feeding centrifugal pump is made of 316 material
Model |
G4TOP |
G5TOP |
Standard filtration area(m2) |
3.4 |
4.5 |
Maximum operating pressure |
6 |
6 |
Power(kW) |
1.75 |
1.75 |
