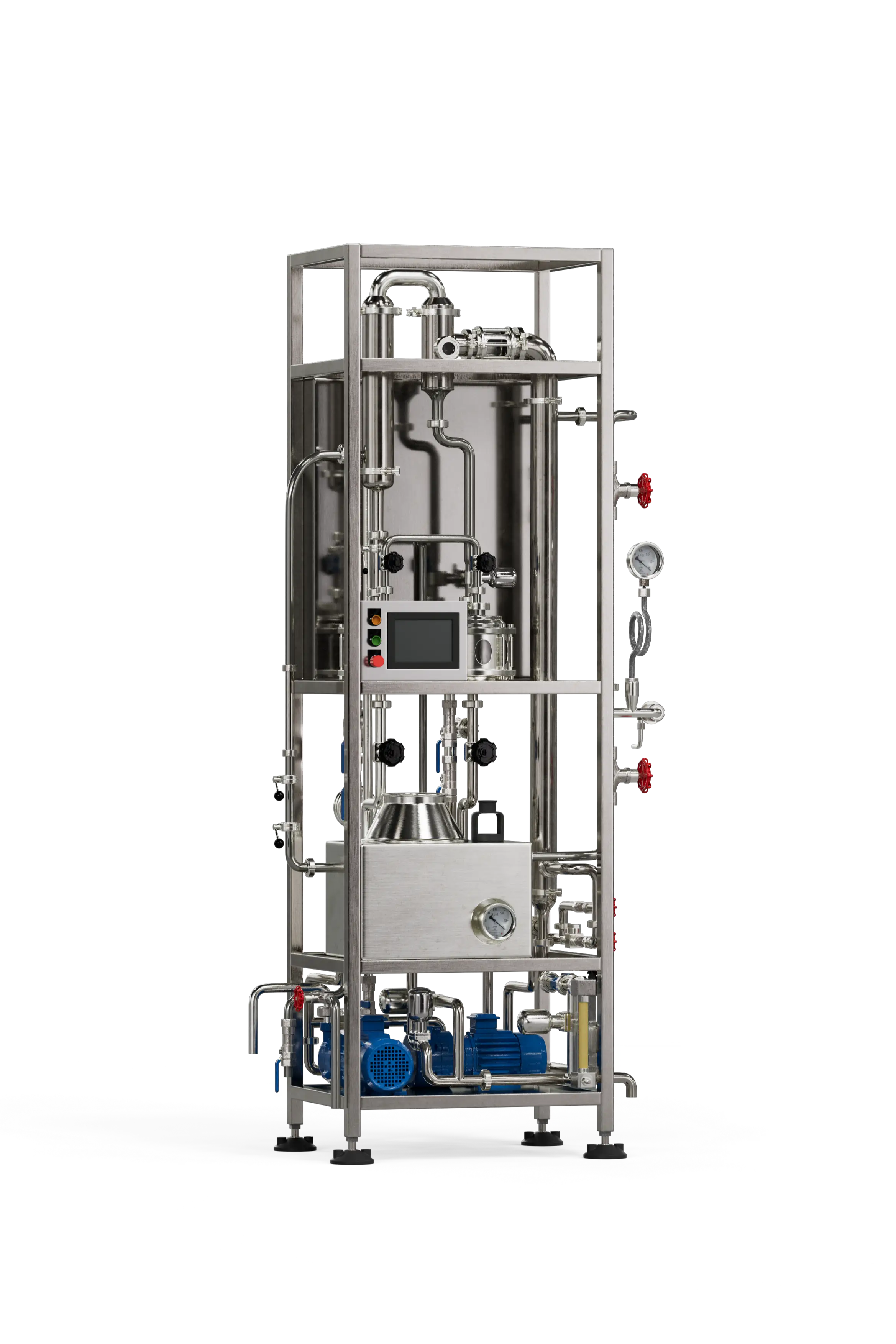

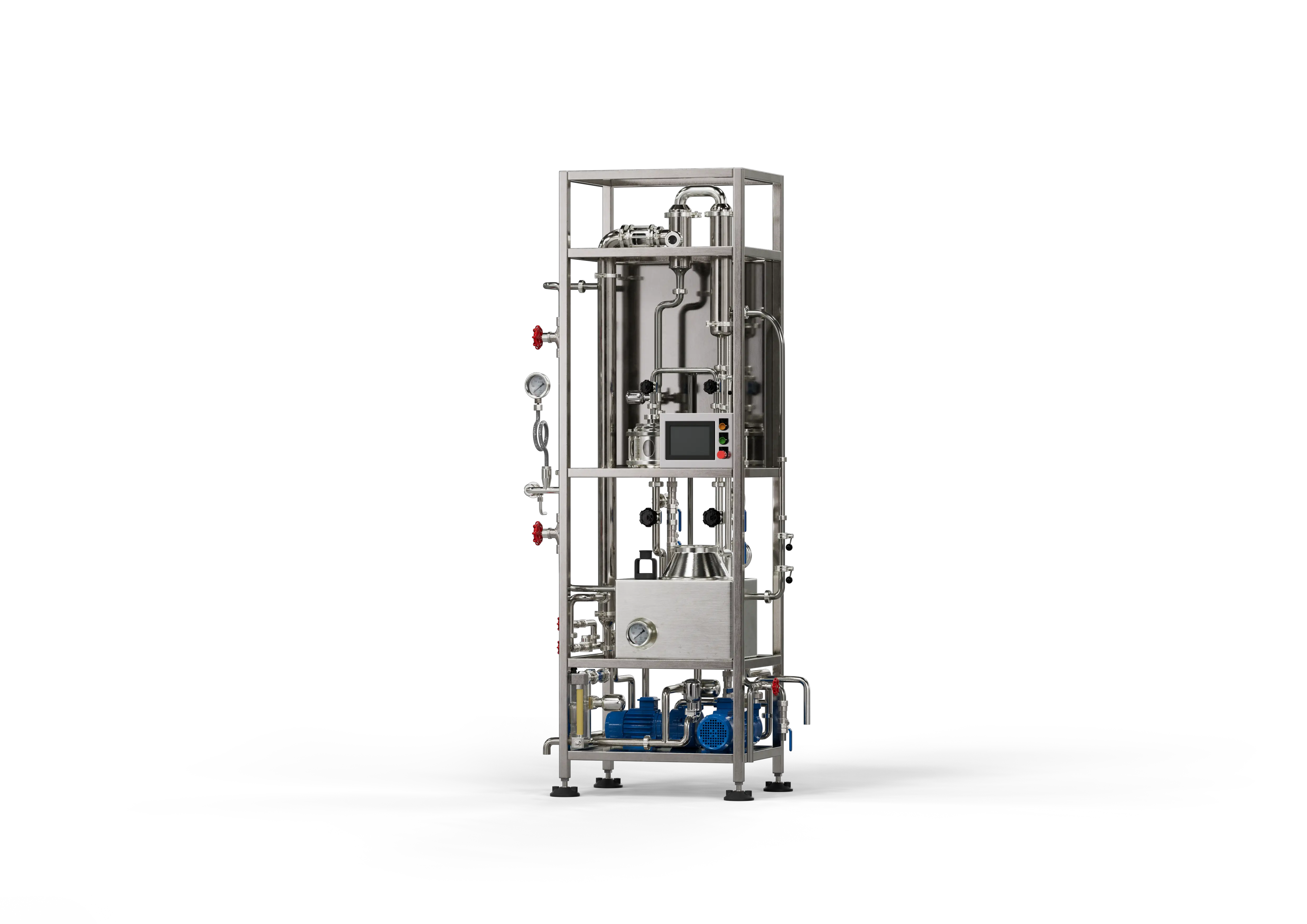

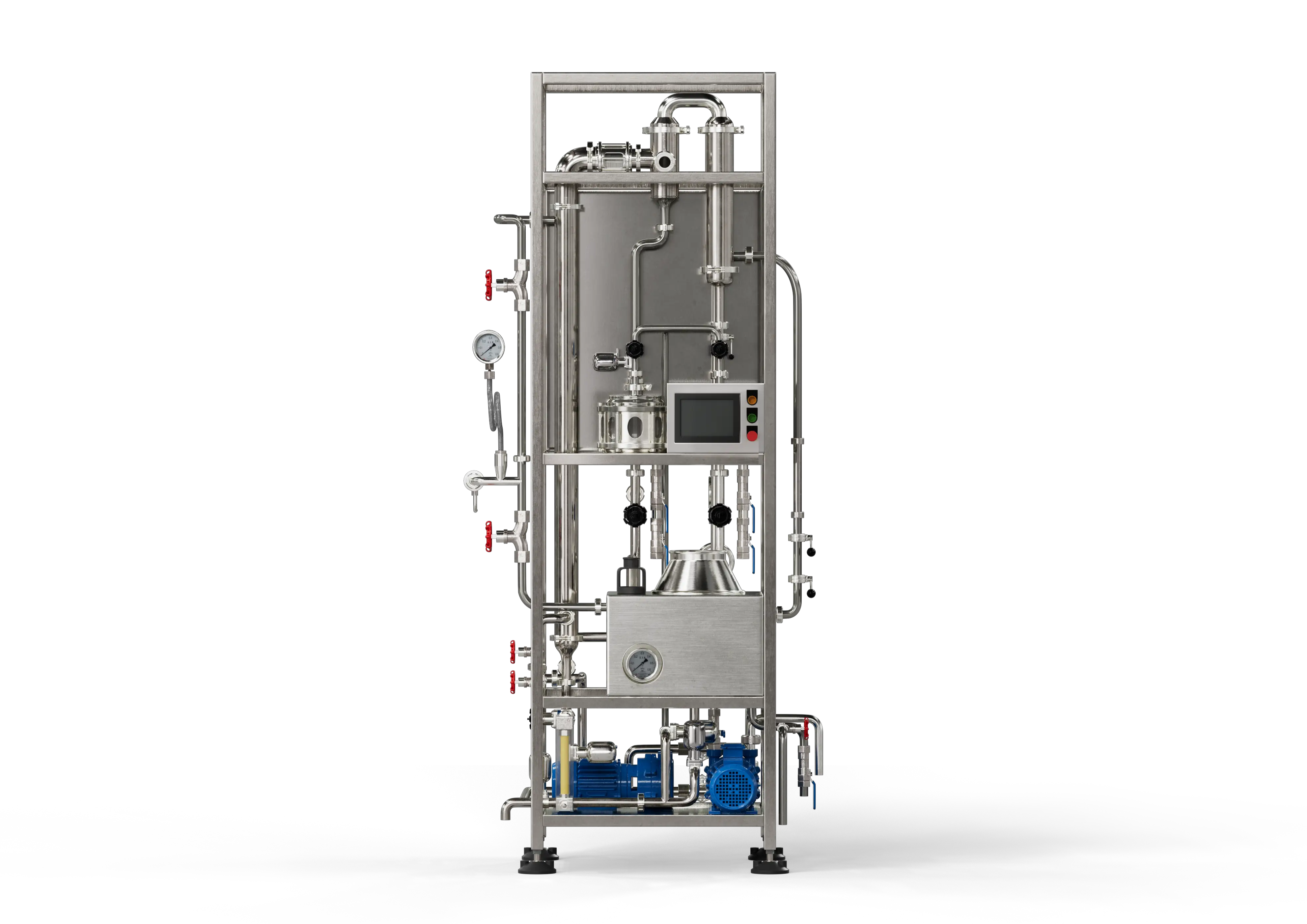

TW-RF10L film concentrating evaporator

Rising film concentration evaporator is a kind of laboratory experimental production equipment. It is the basis for the modern industrial production of large-scale evaporator equipment, and it is also an ideal equipment for colleges and universities to realize theoretical and practical research. The equipment is actually an evaporator in which liquid materials rise in the form of film water in a vertical tube and then separate and concentrate.

Contact Us
Researchability

▪The following research can be done based on the characteristics of the equipment:

▪Suitable for continuous operation of various heat-sensitive liquid materials in the evaporator;

▪Study of experiments on changing parameters (vacuum, material flow, temperature affecting the results, recirculation volume);
▪Calculation of heat exchanger heat;

▪Understand the importance of CIP (cleaning in place) procedures.

Technical Parameters

95847613

Heating tube length	1.48m
Heating area	0.23m2
Maximum evaporation	10l/h
Maximum steam consumption	15kg/h
Maximum steam pressure	1.7bar
Condenser tube length	0.55m
Heat exchange area	0.18m2
Cooling water volume	0.5t/h
Raw material tank	25l
Concentrate tank	4l
Condensate tank	4l
Vacuum volume	750mmhg
Total Power	1.5kw
