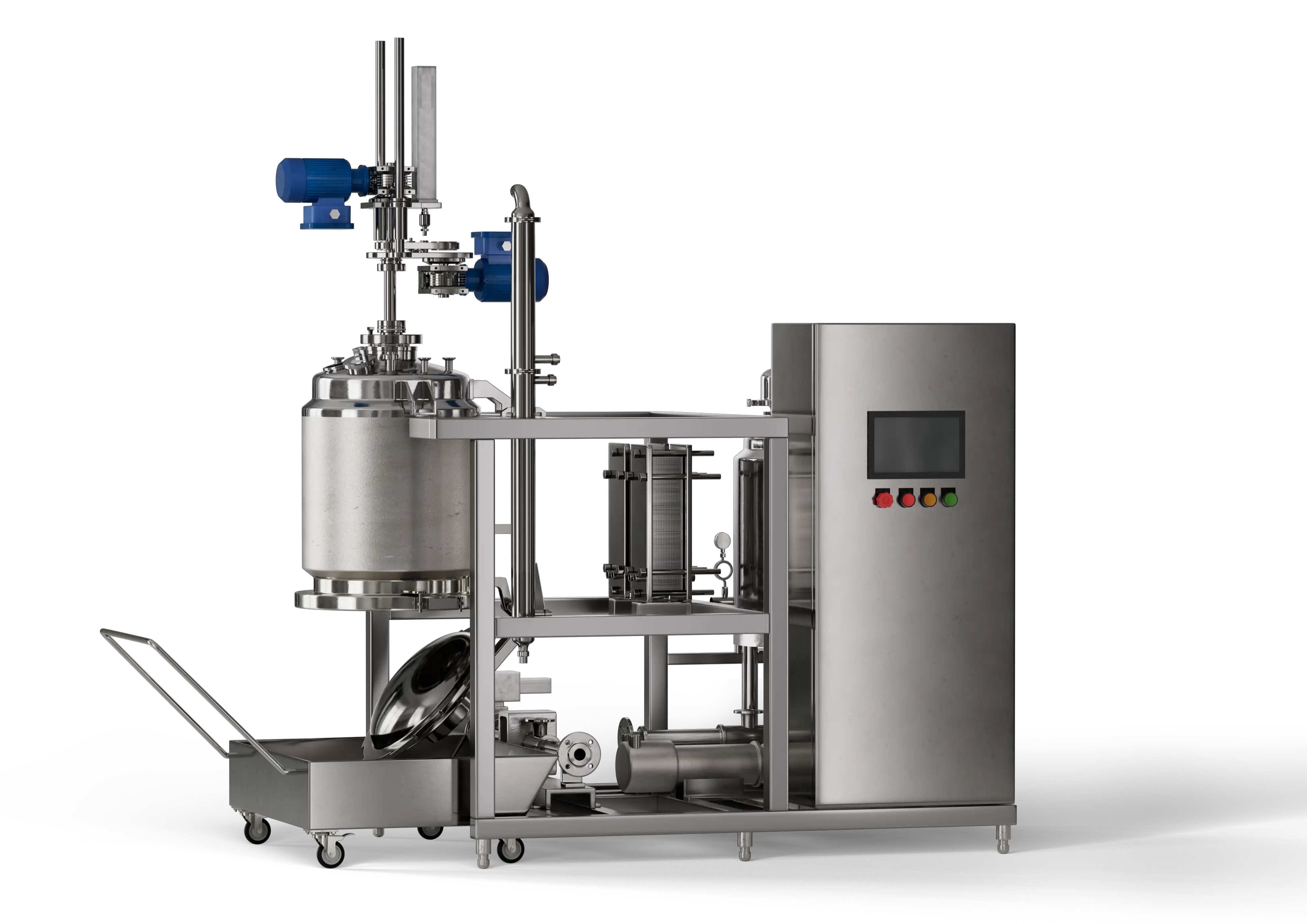

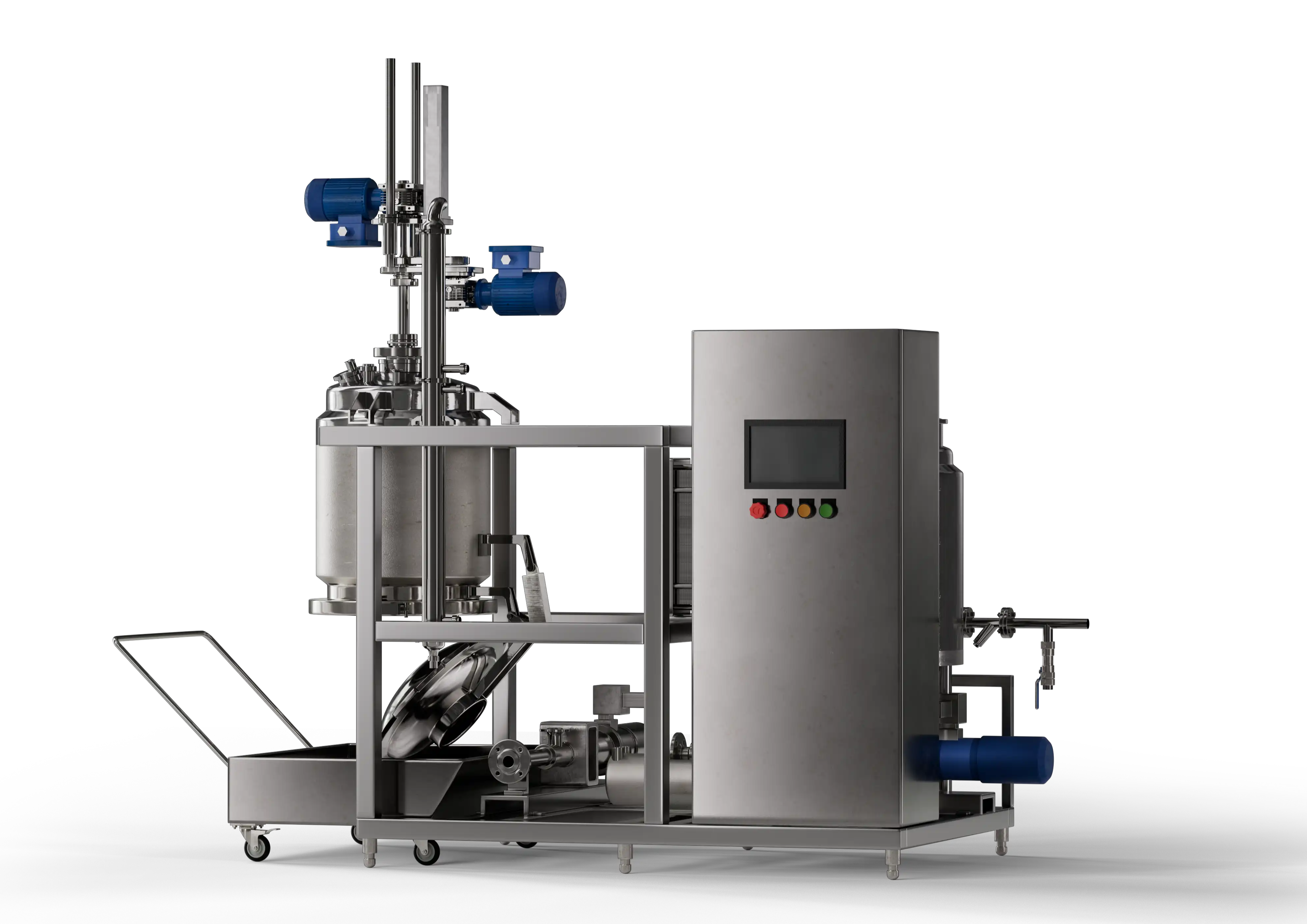

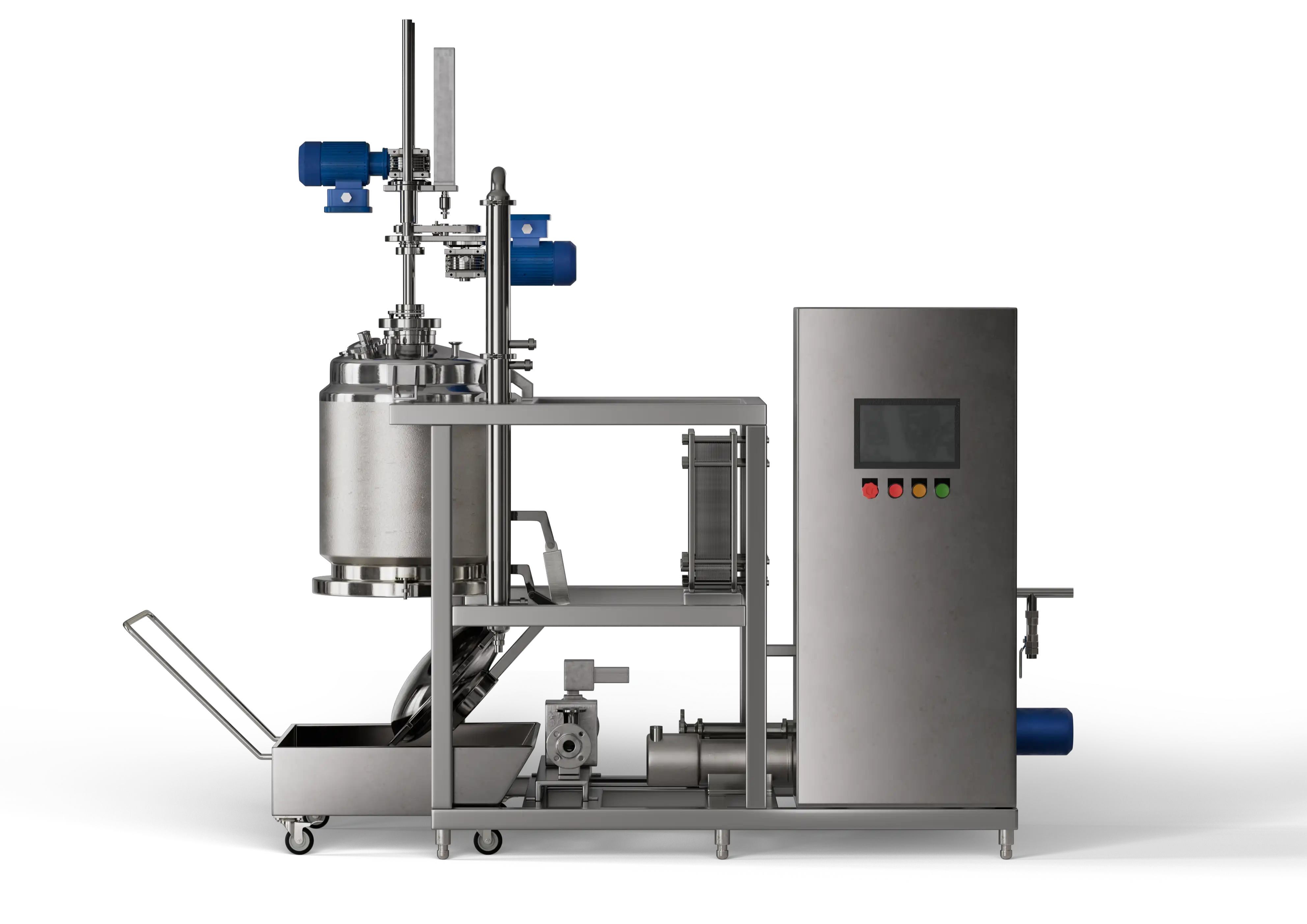

This extraction tank can achieve six functions: drip extraction, cold water soaking extraction, semi-soaking extraction, cyclic soaking extraction, pressurized extraction, and aroma recovery. It is mainly used for the extraction of coffee, tea, sauces, and various concentrates.
Product Features
Multi-functional extraction modes and parameters can be set.
Customizable size as needed.
Suitable for small batch experiments.
Easy to install, operable once connected to public facilities.
Simple operation using a touch screen, capable of storing multiple process parameters.
Equipped with a condenser for aroma recovery.
Total power: 7kw/380V
Extraction temperature: Room temperature to 110℃
Design pressure: -0.08 to 0.1MPa
Extraction tank: 100L volume, bottom opening for slag discharge, diameter 500mm
Stirring speed: 20-60r/min, variable frequency control
Spray flow rate: 100-800L/H
