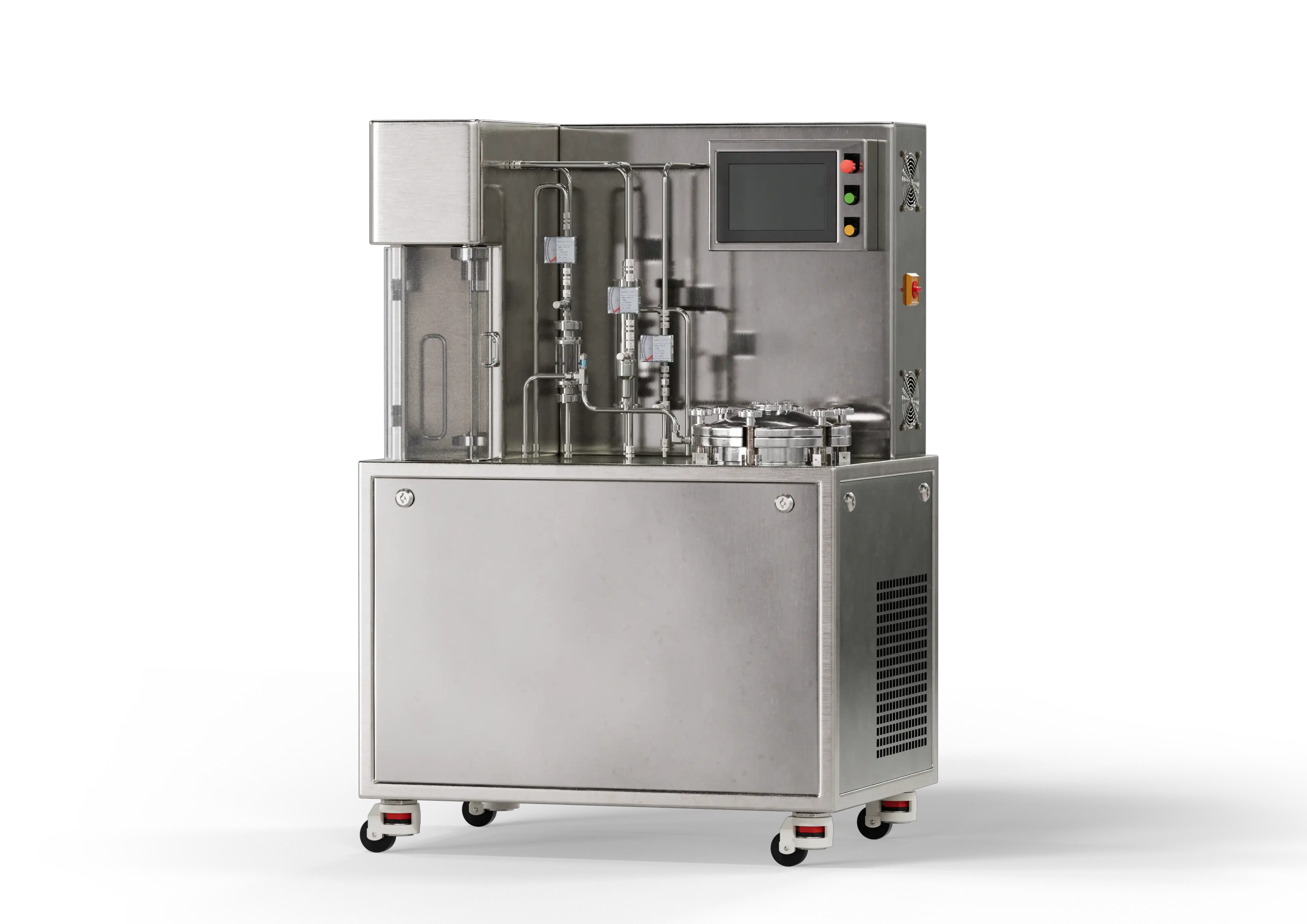

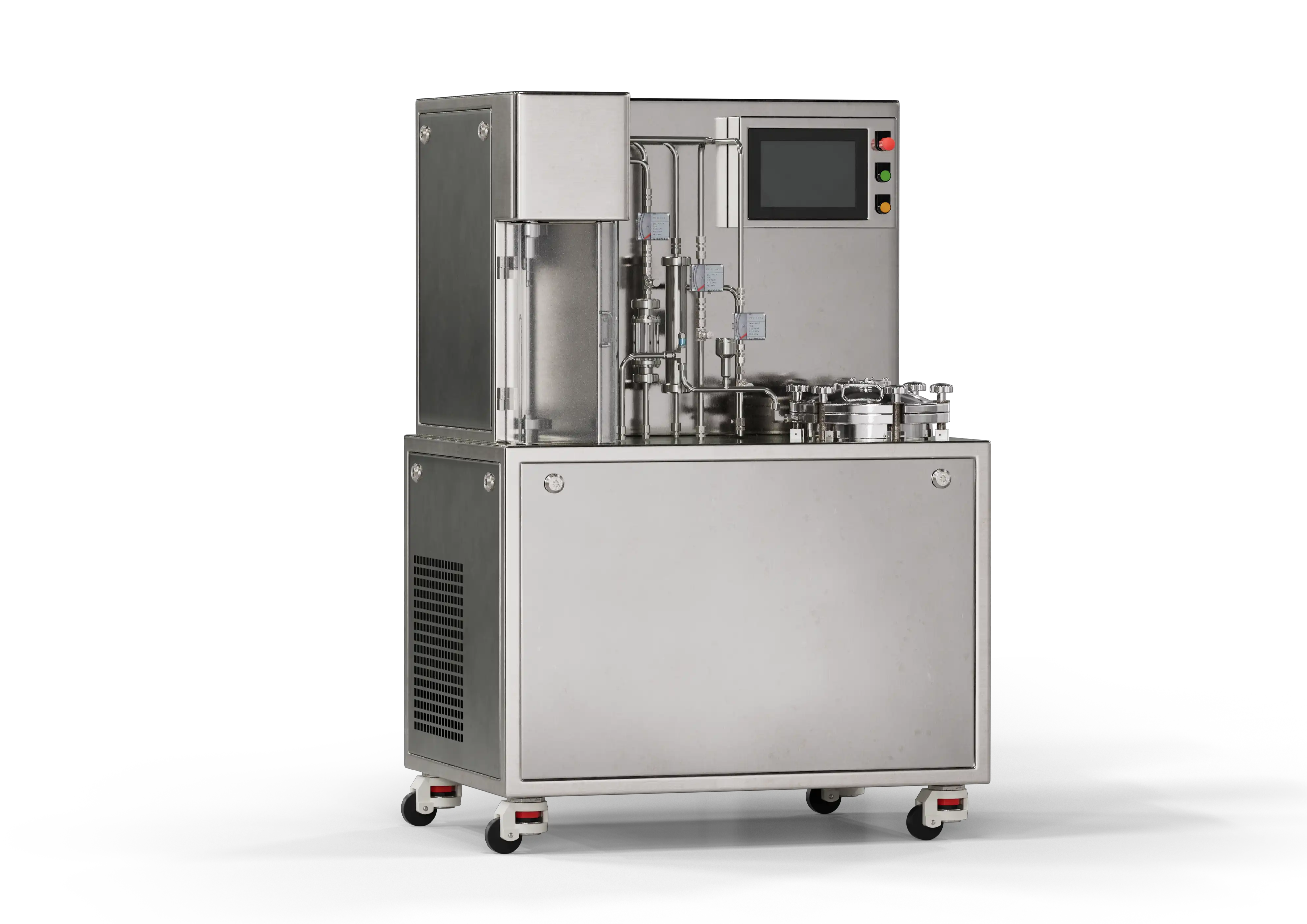

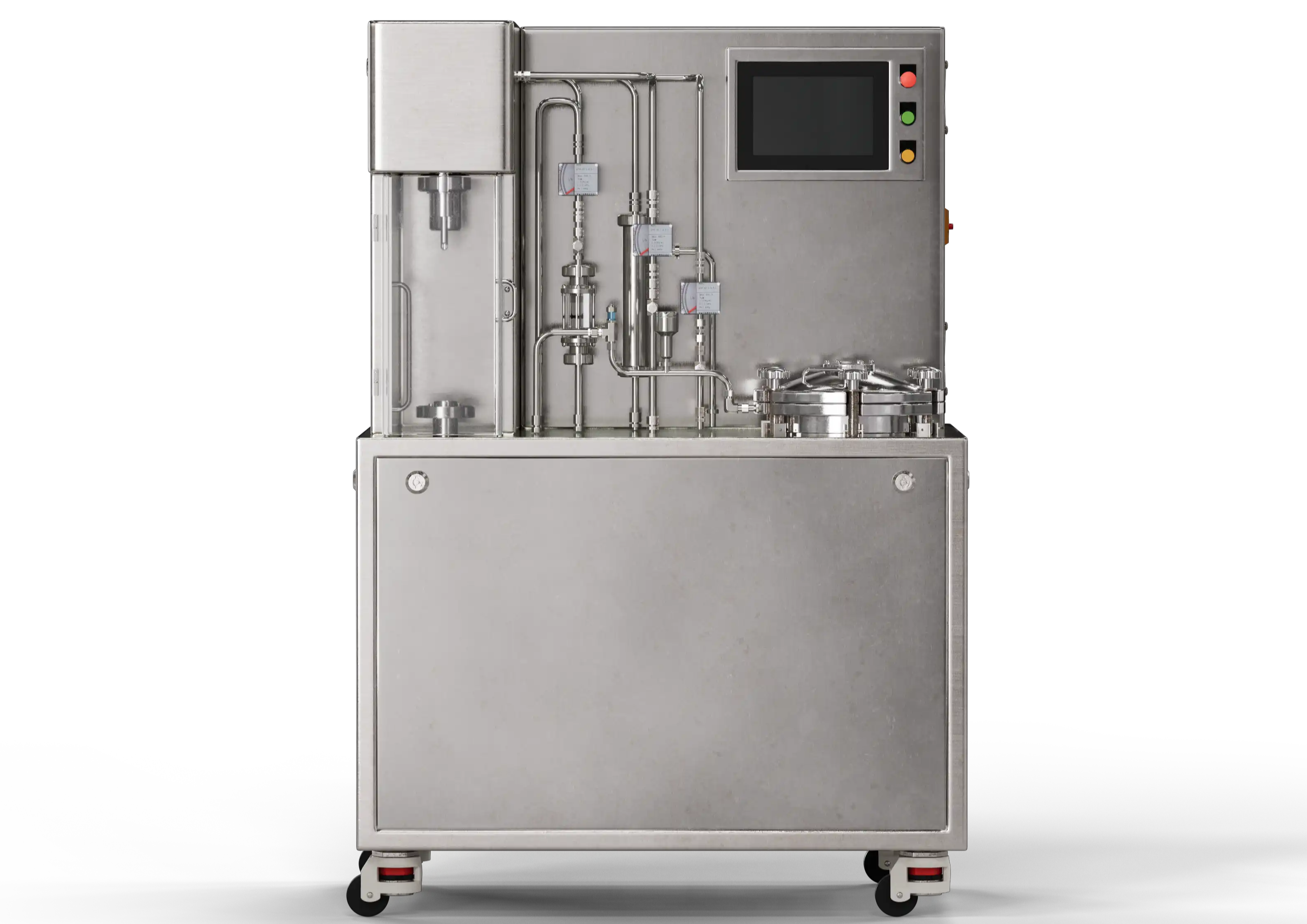

TW-CF01 Carbonated Beverage Filling Machine

Laboratory & Pilot Plant

TW-CF01 Carbonated Beverage Filling Machine

This machine integrates product cooling, carbonation, filling and pressing (screwing) capping. It is an advanced carbonated beverage filling equipment innovatively developed by our company based on the introduction, digestion and absorption of foreign advanced technologies and in accordance with the carbonated beverage filling process requirements. It is mainly used for filling and capping carbonated beverages such as soda, cola, beer, etc. The equipment has a compact structure, safe operation, reliable work and easy maintenance.

Contact Us
Product Features

▪ Precise control of CO2 content and filling volume

▪ Simple and reproducible batch testing.

▪ Very flexible and accurate.

▪ Due to the double-stage cooling, CO2 losses during filling are very rare.

▪ Easy to use: many functions are automated.

▪ Cost-saving: small batch testing, no production line required.

▪ Additional filling/with filling head and capping device, optional capping machine.

▪ Can fill containers of different sizes, the same product can run multiple parameters.
Technical parameters
Crown cap or screw cap available

25L processing tank, batch type, can process at least 5L

Production capacity up to 30L/batch

Applicable to bottles with a capacity of 0.2-2.0L

Color touch screen control

The system can automatically set/run series parameters

Can carbonate easy-to-foam products

Carbonation temperature range: 4-20℃

Pre-mixing and post-mixing methods

Protective gas (N2) can be added

CIP cleaning can be performed

The part in contact with the material is made of SUS304
System Features
- Configuration

  Filling volume 200~1000ml. Equipped with 1 filling head, 1 capping head (crown cap) or 1 screw capping head (plastic cap)
- Capacity

  25L/batch, the capacity is related to CO2 solubility, material foaming and other physical properties
- Applicable bottle type

  Glass bottle, PET bottle and can (additional sealing machine is required)
