Fully Automatic Robot Bottle Unstacking System

Liquor Engineering

Fully Automatic Robot Bottle Unstacking System

The fully automatic bottle unstacking system is designed for empty glass bottles. The working principle is as follows: First, the empty bottle palletizer automatically docks with the lift, and the chain drive conveyor transports the pallet to the temporary unstacking position. The full pallet conveyor then moves the entire stack to the unstacking station. At the unstacking station, the robot system automatically grabs and places the top plate, separator, and empty bottles. The top plate and separator are placed in a designated position with an empty pallet waiting for placement. The robot then automatically collects the top plate, placing it into the top plate storage, and moves the empty bottles to the empty bottle conveyor line. The automatic separator suction mechanism simultaneously removes the separator and places it into the separator storage. This process is repeated until the entire stack of bottles is unloaded. Finally, the empty pallets are automatically transported to the pallet stacker. Once the pallets reach the designated quantity, they are conveyed via a chain to the packaging material recycling lift for reprocessing.

Contact Us
Product Features

Applicable Range: Glass bottles, ceramic bottles, and various types of containers; bottle caps, turnover boxes, gift boxes, cartons, and other packaging materials.
Capacity: ≥15,000 bottles/hour (adjustable according to customer requirements).
Robot Gripper Functionality: Supports separator recovery, empty bottle unstacking, high-speed, stable, and reliable continuous operation.
Human-Machine Collaboration: Manual labor removes the outer packaging of the stacked empty bottles, and waste packaging materials are collected for recycling.
Applicable Pallet Size: Length 1200-1600mm × Width 1000-1400mm × Height 140-160mm.
Automatic Empty Pallet Collection: The system is designed for easy operation, able to quickly handle exceptions.
Product Changeover: Gripper solution with a one-click changeover for product switching.
Customizable, Intelligent, and Digital Robot Unstacking System

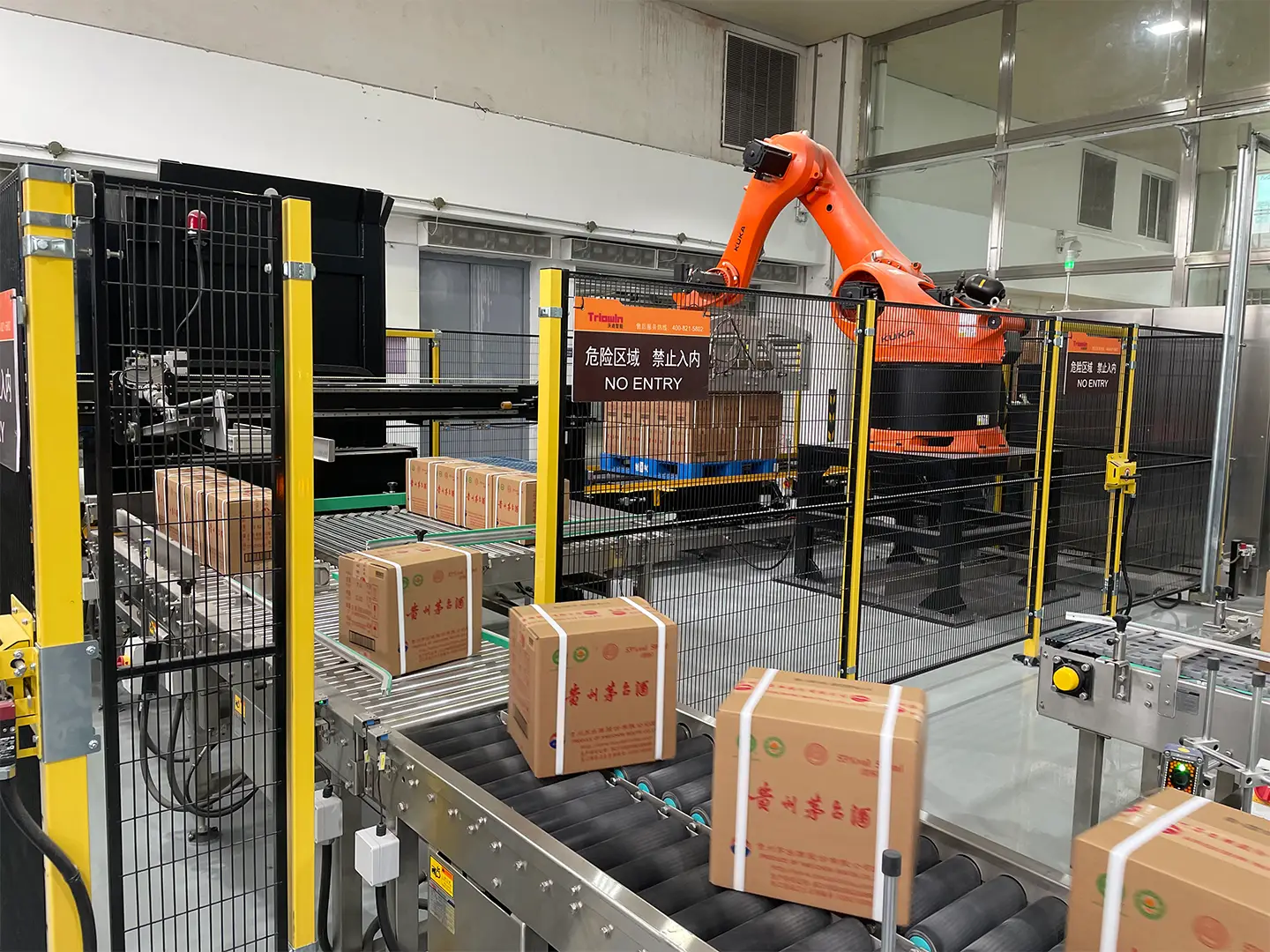

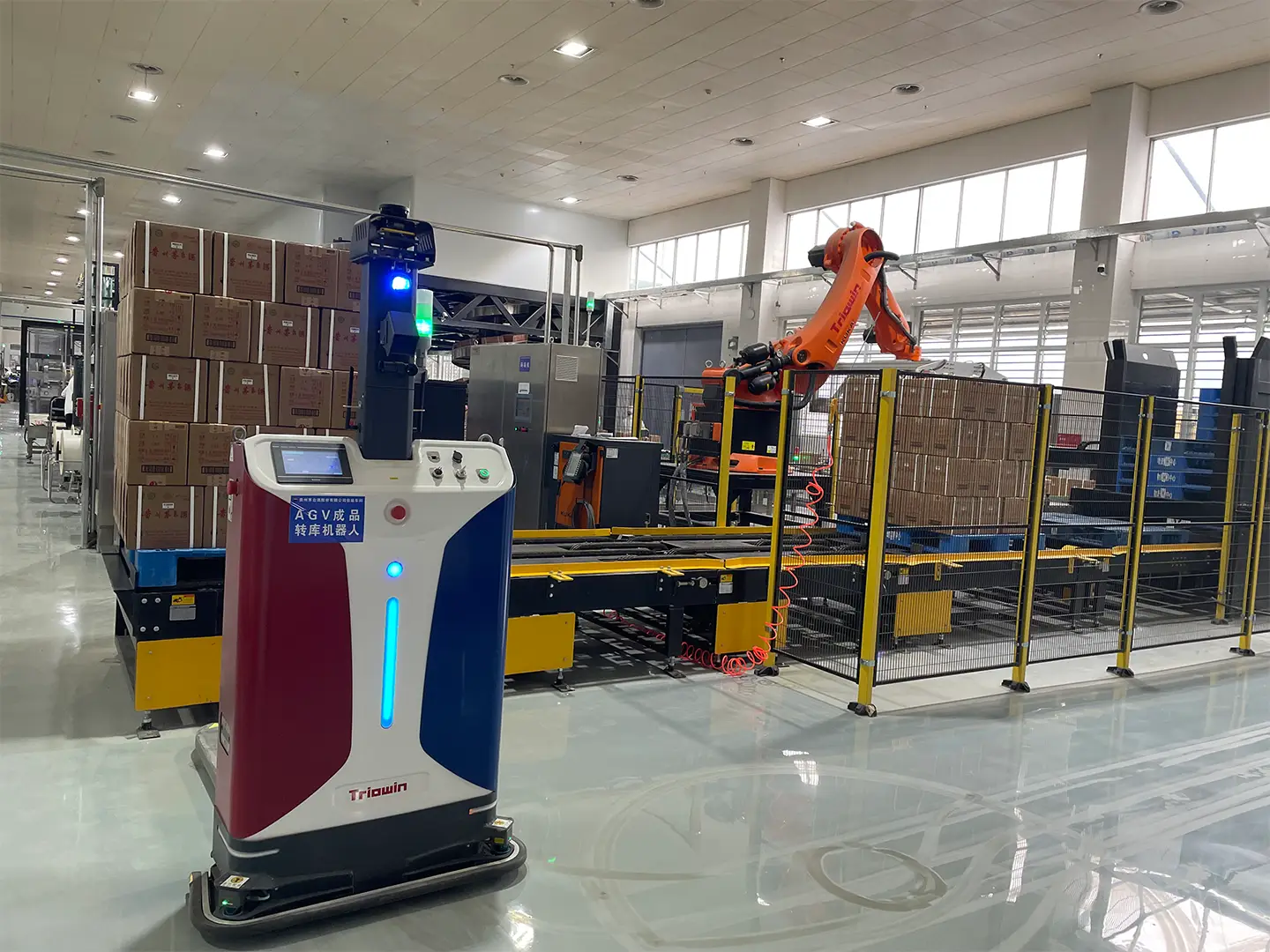

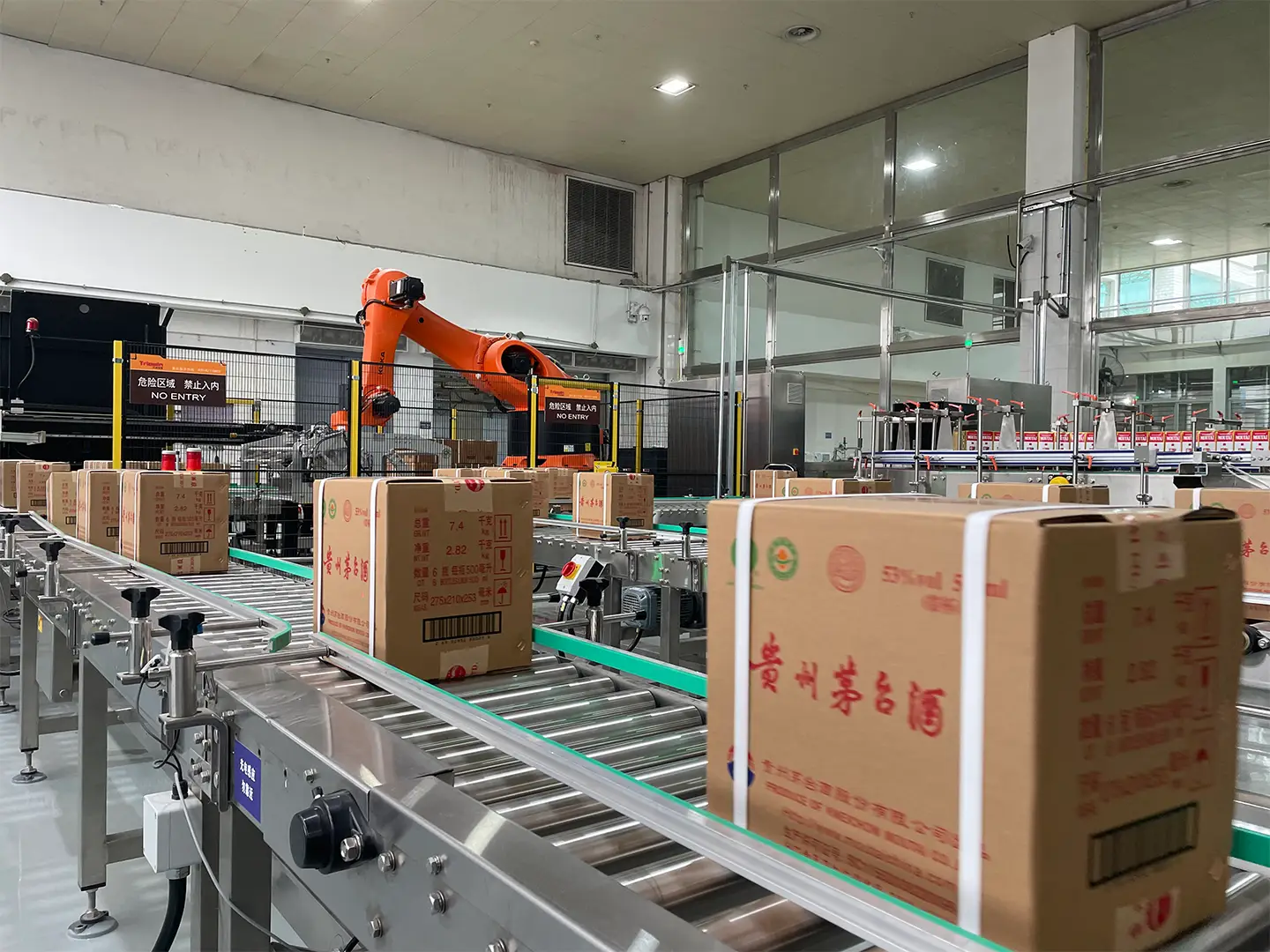

Equipment Display
