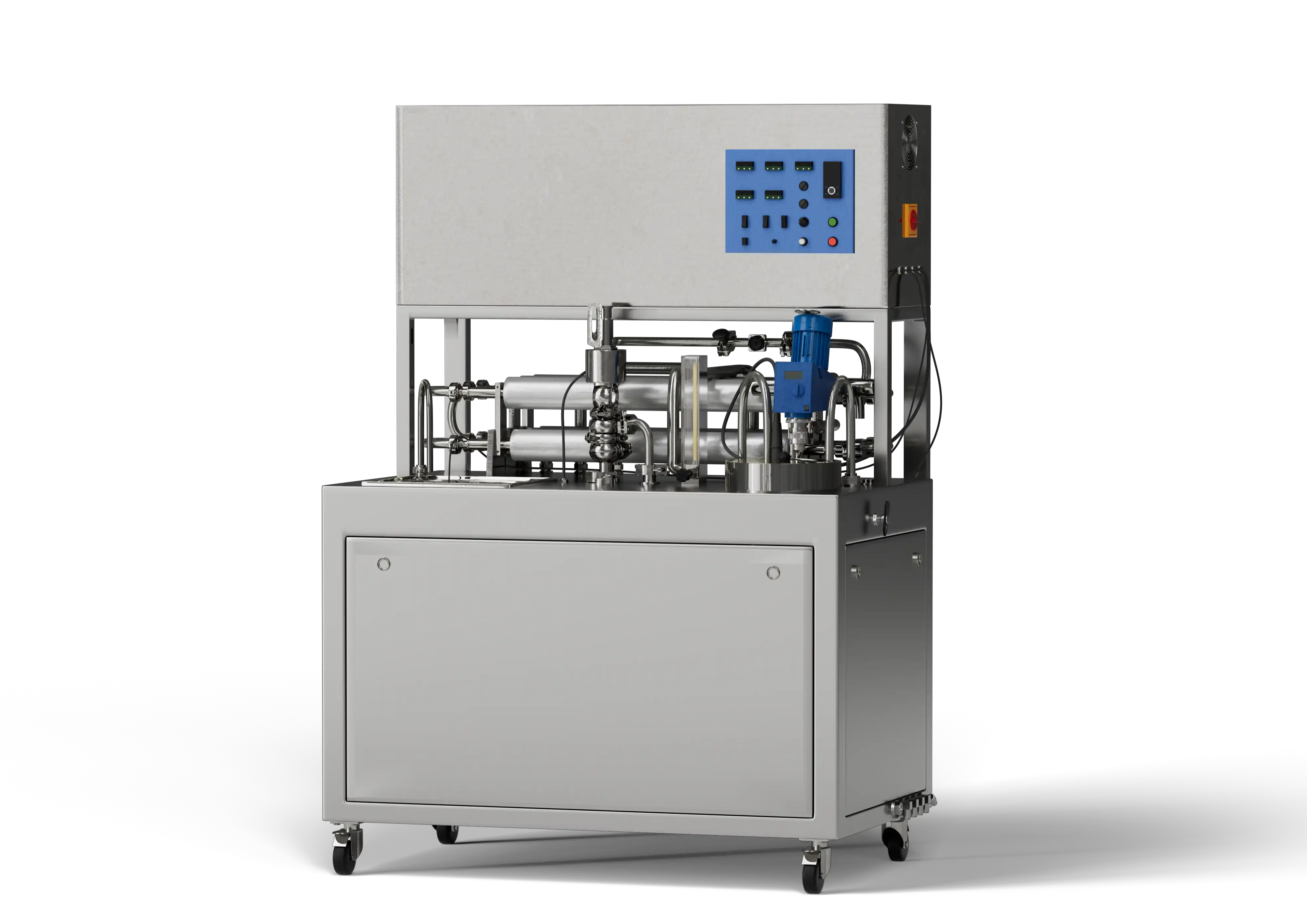

The TW-YC20 yogurt cooler adopts shell-and-tube heat exchange cooling. The design structure includes a pre-cooling section and an ice cooling section. The equipment has a compact structure and the peripherals only need to be connected to ice water, tap water and electricity. The cooling temperature is precisely controlled.
▪ Provide stable and repeatable experimental data for the development of stirred yogurt;
▪ Cool the yogurt to the required filling temperature through a two-stage cooling system, and complete the demulsification and cooling processes at the same time;
▪ Give the product different shear forces by adjusting the yogurt smooth valve;
▪ Test the effects and recovery of different filling temperatures and different shear forces on yogurt texture and viscosity;
▪ Suitable for repeated comparisons of stirred yogurt, Greek yogurt and dairy desserts.
|
Standard capacity |
20L/H (flow rate 5-40L adjustable) can be customized according to customer requirements |
|
Cooling pipe size |
Inner diameter 13mm |
|
Rongtong Granules |
Max. 0.8mm |
|
Minimum cooling temperature |
10℃ |
|
Maximum heating temperature |
110℃ |
|
Maximum pressure |
10bar |
|
CIP Function |
have |
|
Feed hopper |
10L, with stirrer |
|
power supply |
3-phase power supply, 380V, zero and ground wire |
|
Design power |
8KW |
|
Tap water requirements |
Pressure ≥ 2KG, consumption ≥ 250L/H |
|
Ice water requirements |
Pressure ≥ 2KG, consumption ≥ 150L/H, temperature ≤ 7℃ |
