Equipment Composition

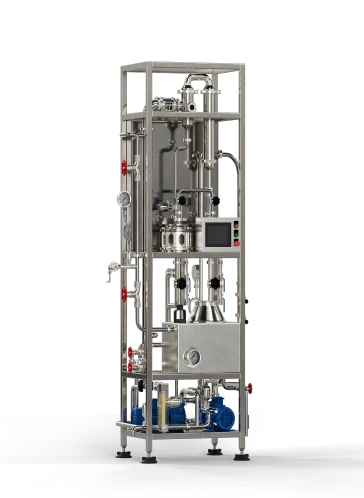

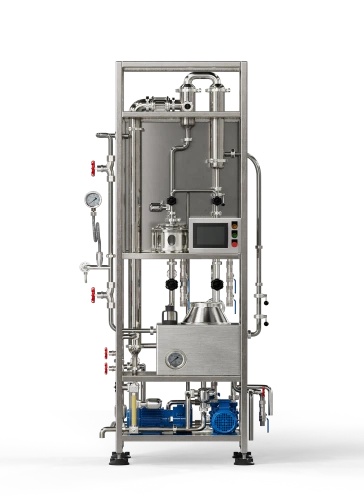

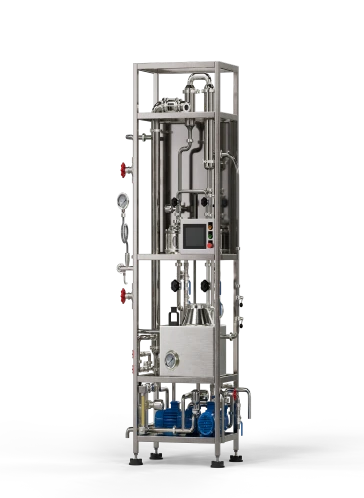

The single-effect evaporator consists of a heating chamber, separator, defoamer, steam-liquid separator, condenser, cooler, liquid storage tank, circulation pipes, and other components. The entire equipment is made of high-quality stainless steel.

Heating Chamber
The interior of the heating chamber is a tube bundle design. The shell side is connected to live steam, which heats the liquid inside the tubes. The liquid chamber is equipped with a pressure gauge and safety valve to ensure operational safety.

Separation Chamber
The separation chamber has a sight glass on the front for the operator to observe the evaporation status of the feed liquid. A manhole at the back allows easy cleaning of the chamber when changing products. It is also equipped with a thermometer and vacuum gauge to monitor the temperature of the liquid inside the evaporation chamber and the vacuum level during vacuum evaporation.

·         High Recovery Efficiency
The alcohol recovery capacity is strong, using a vacuum concentration process. Compared to older models, it improves production efficiency by 5-10 times, reduces energy consumption by 30%, and features low investment with high recovery benefits.

·         Concentrated Liquid Feed
This equipment combines external heating natural circulation with vacuum negative-pressure evaporation, allowing fast evaporation. The concentration ratio can reach 1.3, and the liquid feed is concentrated without foam in a fully sealed environment.

·         Pollution-Free and Easy to Clean
The liquid extracted using this equipment is free of contamination and has a strong medicinal taste. It is also easy to clean (simply open the top and bottom covers of the heater for cleaning).

·         Easy Operation
The equipment is easy to operate and occupies a small area. The heater and evaporator are made with a stainless steel insulated structure, with the insulation layer covered by a stainless steel thin sheet shell, and the surface treated with a mirror or matte finish.
