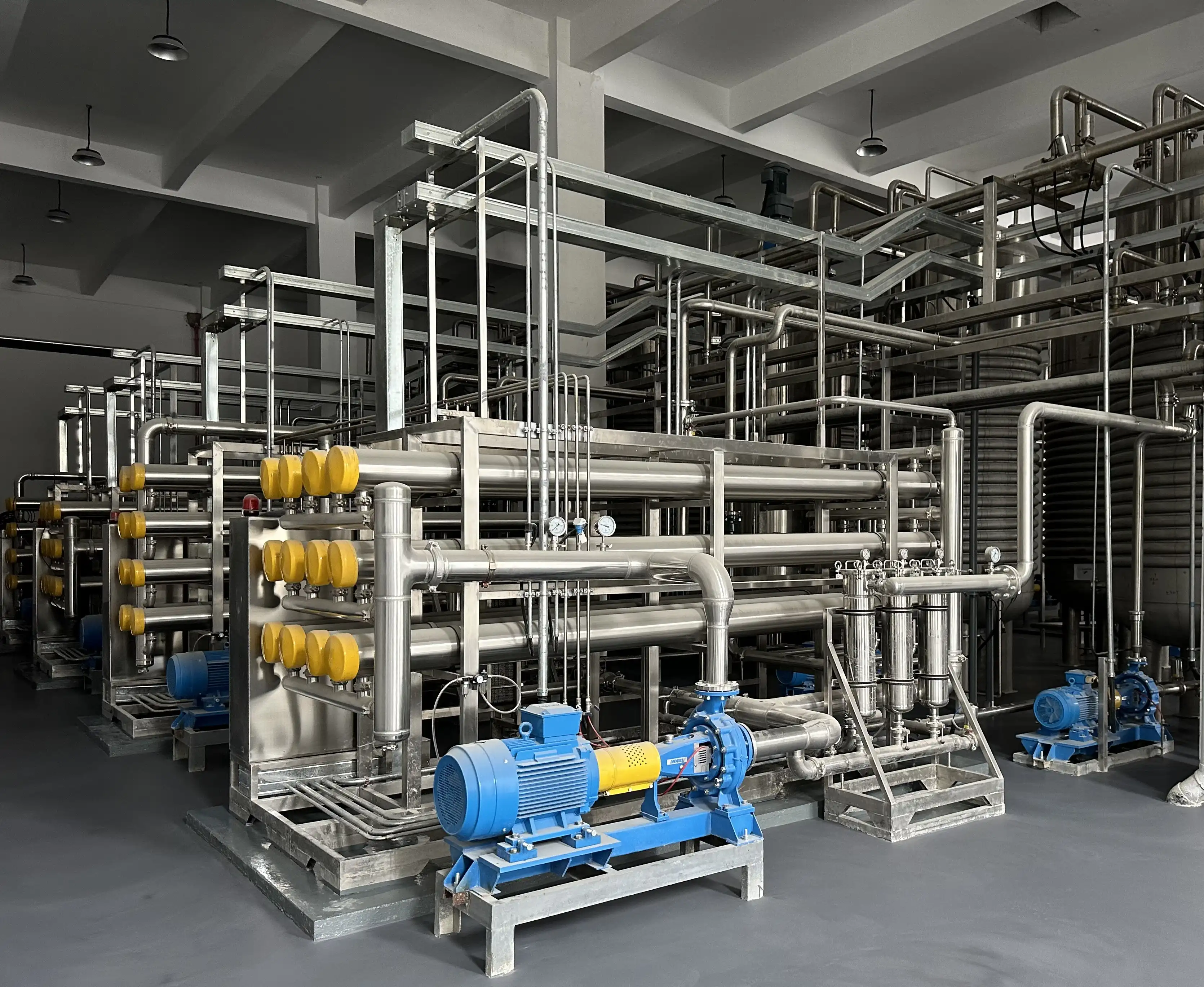

The separation and filtration system includes horizontal screw centrifuges, disc centrifuges, and membrane filtration systems.
The separation and filtration system includes horizontal screw centrifuges, disc centrifuges, and membrane filtration systems.
Model |
GHT12P |
GHT32P |
GHT53V |
GHT53-600V |
Inner Diameter (mm) |
250 |
357 |
500 |
600 |
length(mm) |
863 |
1597 |
2160 |
2160 |
Screw Diameter (mm) |
248 |
355 |
498 |
598 |
Rotation Speed(rpm) |
0-7000 |
0-4300 |
0-3500 |
0-3500 |
Water Flux (m2/h) |
6 |
20 |
60 |
90 |

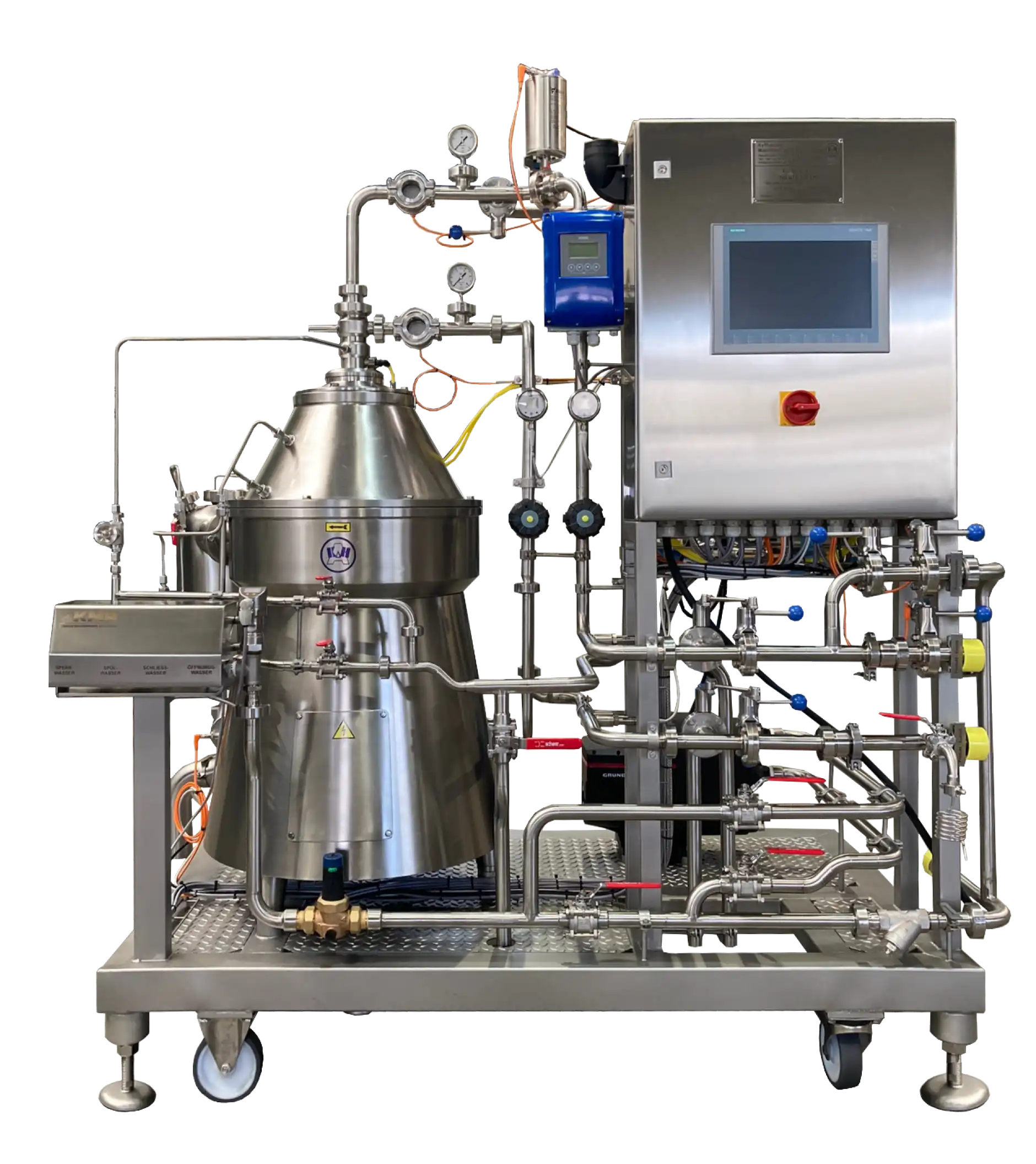

Triowin's industrial disc centrifugal separator is widely used in the separation and clarification of products obtained from yeast fermentation, bacterial fermentation, cell culture, and other processes. It is also applied in the production of bio-based materials, beer clarification, pharmaceuticals, and more. This disc separator is manufactured with excellent craftsmanship, featuring good mechanical performance and a hygienic design to ensure continuous and stable separation results. Inert gas can be used to protect product quality.
Additionally, there is a high-flow self-cleaning nozzle disc centrifugal separator, with a capacity of up to 70,000L/H (water flux of 100,000L/H).
Model |
GTS 30B-KH |
Processing capacity |
3000 L/H |
Rotation speed |
6900 rpm |
Oxygen Uptake Rate |
0.005 - 0.02 mg/L |
Temperature Change Rate |
0.5C |
Liquid Phase Discharge Pressure |
4-5 bar |
Noise |
ISO 3744 or DIN 45365 at ≤68 dB (A) |
Motor Power |
7.5 kW |
Protection Rating |
IP56(Control Cabinet IP66) |
