Ascending/Falling film evaporator

Ascending film evaporator

Falling film evaporator

Technical Parameters

Food Engineering

Ascending/Falling film evaporator

The concentration equipment of Shanghai Triowin fruit and vegetable processing production line is specially used for concentrated juice and jam, the whole process is vacuum aseptic, and can also be used for concentrating milk, liquid medicine, etc., according to the fluidity of the material and the concentration that needs to be achieved to choose different concentration equipment and concentration methods.

Contact Us

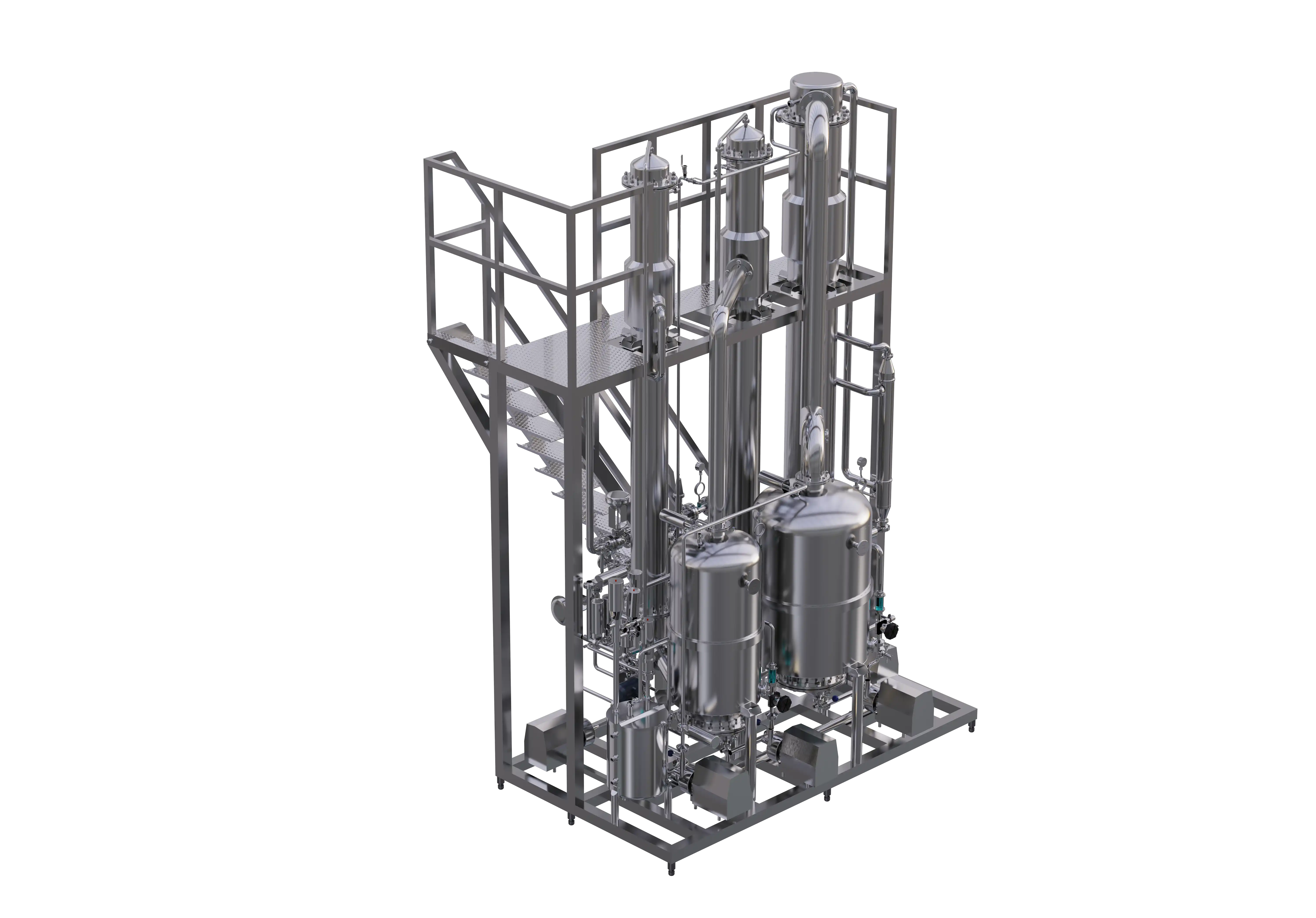

Ascending film evaporator

This equipment can be applied to vacuum concentration operations in traditional Chinese medicine, food and chemical industries. Including: fruit juice drinks, milk drinks, Chinese herbal medicine, western medicine, glucose, animal protein, vegetable protein, wine, starch, oral liquid, chemical industry, health food, pigments, additives, monosodium glutamate, etc.

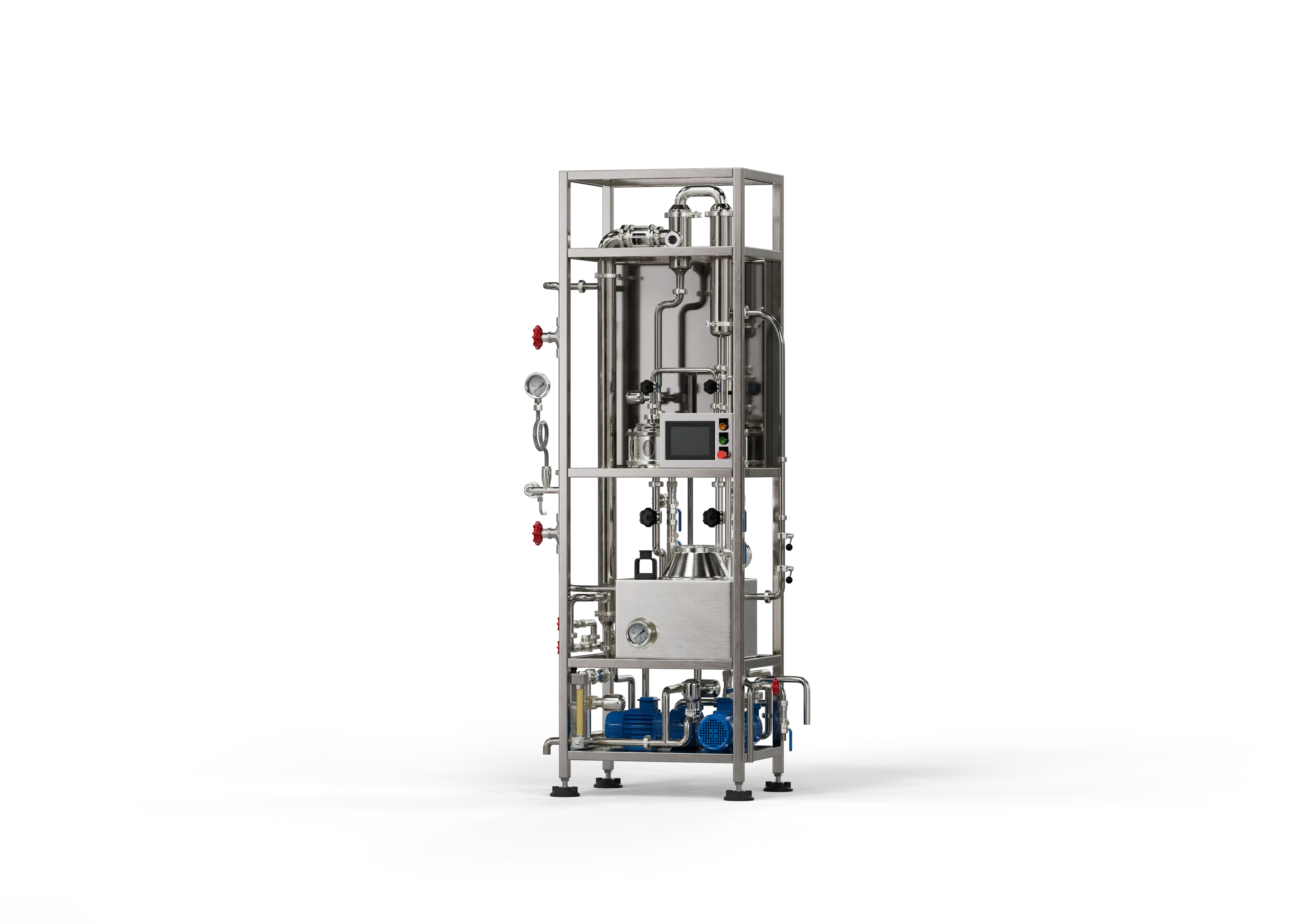

Falling film evaporator

This concentrator is suitable for the continuous concentration of heat-sensitive substances (such as milk, fruit juice, liquid medicine, etc.) under vacuum conditions. It is composed of heater, evaporation chamber, hydraulic ejector, multi-stage water pump, water tank, circulating discharge pump and operation table, etc., and all material contact parts are made of stainless steel materials. It has the characteristics of small size, high efficiency and low cost, and is an ideal concentration equipment.

Technical parameters

34861529

Model	TW15B1200		TW15B2400		TW15C3600			TWC15C10000			TWC15C20000
Number of cycles	1 effect	2	1 effect	2	1 effect	2	3 effects	1 effect	2	3 effects	1 effect	2	3 effects
Evaporation capacity (/lh)	1200		2400		3600			10000			20000
Vacuum(kpa)	65-73	89-91	65-73	89-91	59	78	90	52	76	88	52	76	88
Evaporation temperature (°C)	67-73	46-50	65-73	46-50	76	62	48	75-80	55-65	45-50	75-80	55-65	45-50
Heating temperature (°C)	82-86	67-73	87-90	70	40	76	62	93	80	65	93	80	65
Final concentration (%)	45-65		48-65		48-65			45-72			45-72
Heat Pump Vapor Pressure (MPa)	0.5-0.6		0.5-0.6		0.5-0.6			0.6-0.8			0.6-0.8
Steam consumption(kg/h)	≦500		≦1000		≦1550			≦3300			≦6600
