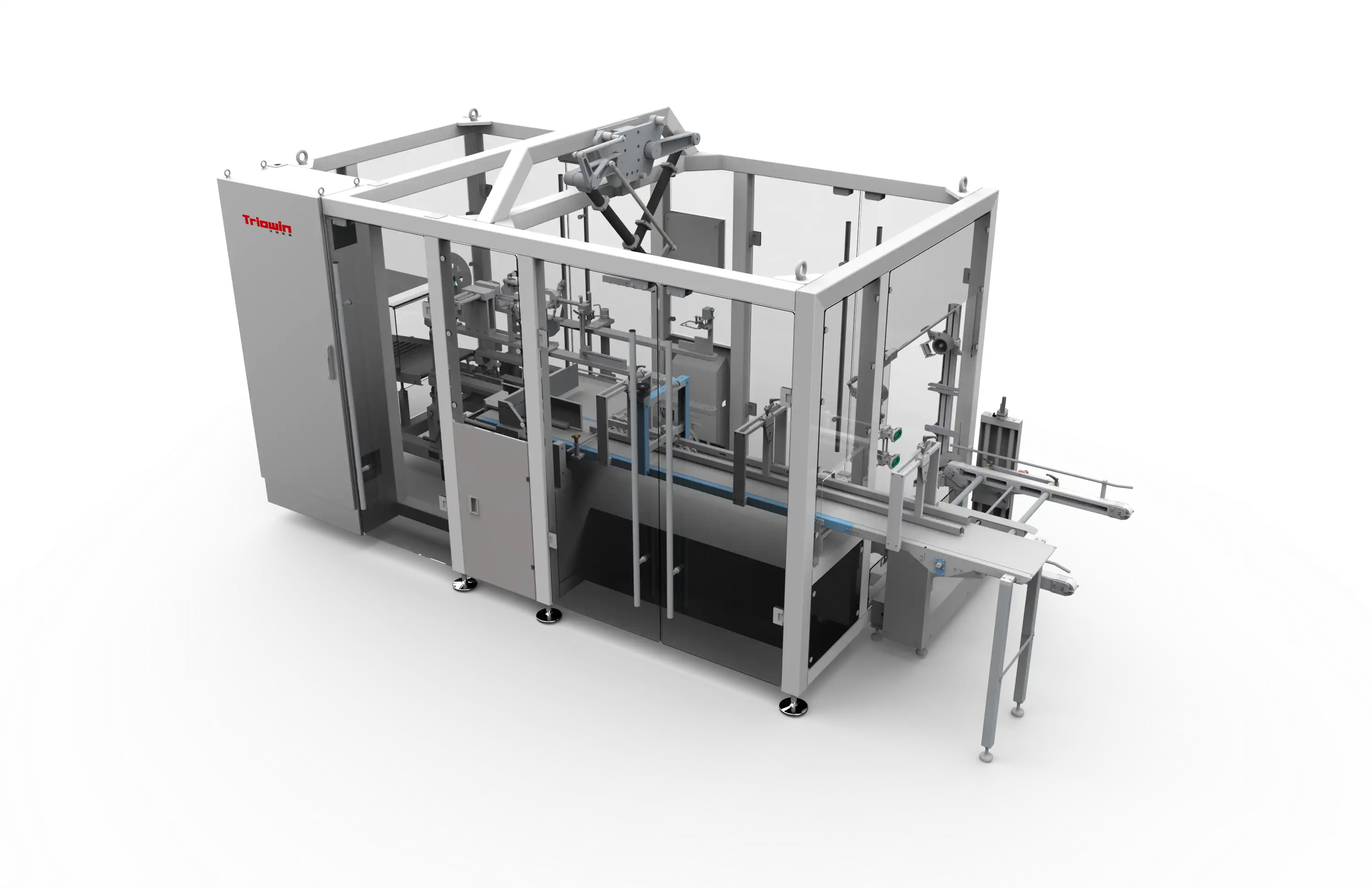

The Top-load Fully Automatic Case Packer produced by the company consists of the following main components:
Product input module
Material sorting module
Case opening module
Case packing module
Case sealing module
Small boxes, medium-sized packages, or bottled products enter the feeding system. The case packing machine arranges and organizes these products in the sorting system according to user specifications (e.g., how many small boxes, medium packages, or bottles per carton, their arrangement, and layer * column). After sorting, the product group is stably transferred into the carton by the packing robot. Once the products inside the carton are verified to meet the user's specifications, the carton is sent to the sealing unit for tape sealing. The finished carton is then discharged, forming stable packaging.
This machine is suitable for carton packaging of small boxes, medium-sized packages, bottles, and other products. It plays a protective role (moisture-proof, dust-proof, surface protection) and facilitates logistics and transportation. It is mainly applicable in industries such as pharmaceuticals, daily chemicals, food, and beverages.
▪ Balcony design, in line with GMP standards
▪ Stepped design of carton material conveying unit ensures consistent suction conditions each time
▪ Four carton-standing fingers on the carton conveying belt ensure neat appearance of carton sealing
▪ Mechanical and moving parts are isolated, with high safety standards and easy to clean
▪ Convenient operation on the operator side
▪ No product from the previous batch will be left behind when changing specifications
▪ Easy and convenient specification change
▪ Integrated structure saves floor space
|
Equipment Dimensions |
6200 x 2200 x 2680 mm [L x W x H] |
|
Equipment Weight |
2600KG |
|
Carton Specifications |
Corrugated carton |
|
Sealing Method |
Tape / Hot melt adhesive |
|
Minimum Specification Range |
Packed products 30 x70 x 15 mm [L x W x H] |
|
Maximum Specification Range |
Packed products 580 x 250 x 250 mm [L x W x H] |
|
Packing Speed |
Max. 12 carton/min |
|
Voltage/Power |
380V/10KW |
|
Air Pressure |
6-8 Bar |
|
Controller Embedded PLC |
Germany BECKHOFF or equivalent brand |
|
Servo System |
Germany BECKHOFF or equivalent brand |
|
Gearbox |
Alpha Precision Gearbox |
|
Low Voltage Electrical Equipment |
Schneider |
