Food Engineering

Fruit and vegetable pre-treatment equipment

Shanghai Triowin refined fruit and vegetable processing pre-treatment system equipment, mainly including raw material pool, hydraulic conveying, floating washing, lifting, spray cleaning, brush cleaning, sorting and other structural units, raw fruit transportation, fruit, fruit washing and picking, the whole line of raw fruit pre-treatment equipment coherent operation, thousands of production line application experience, widely praised.

Contact Us
Air blowing machine

▪ It is suitable for cleaning fruit and vegetable raw materials;

▪ Blast blistering cleaning to make the original fruit tumble to remove sludge;

▪ Rinse water is recyclable.

Technical parameters

Model

TW3A5

TW3A10

TW3A15

TW3A25

Throughput (t/h)

5

10

15

25

Power(kW)

3

4

4

5.5

Dimensions (mm)

2500×1000

3000×1200

3500×1500

3500×1500

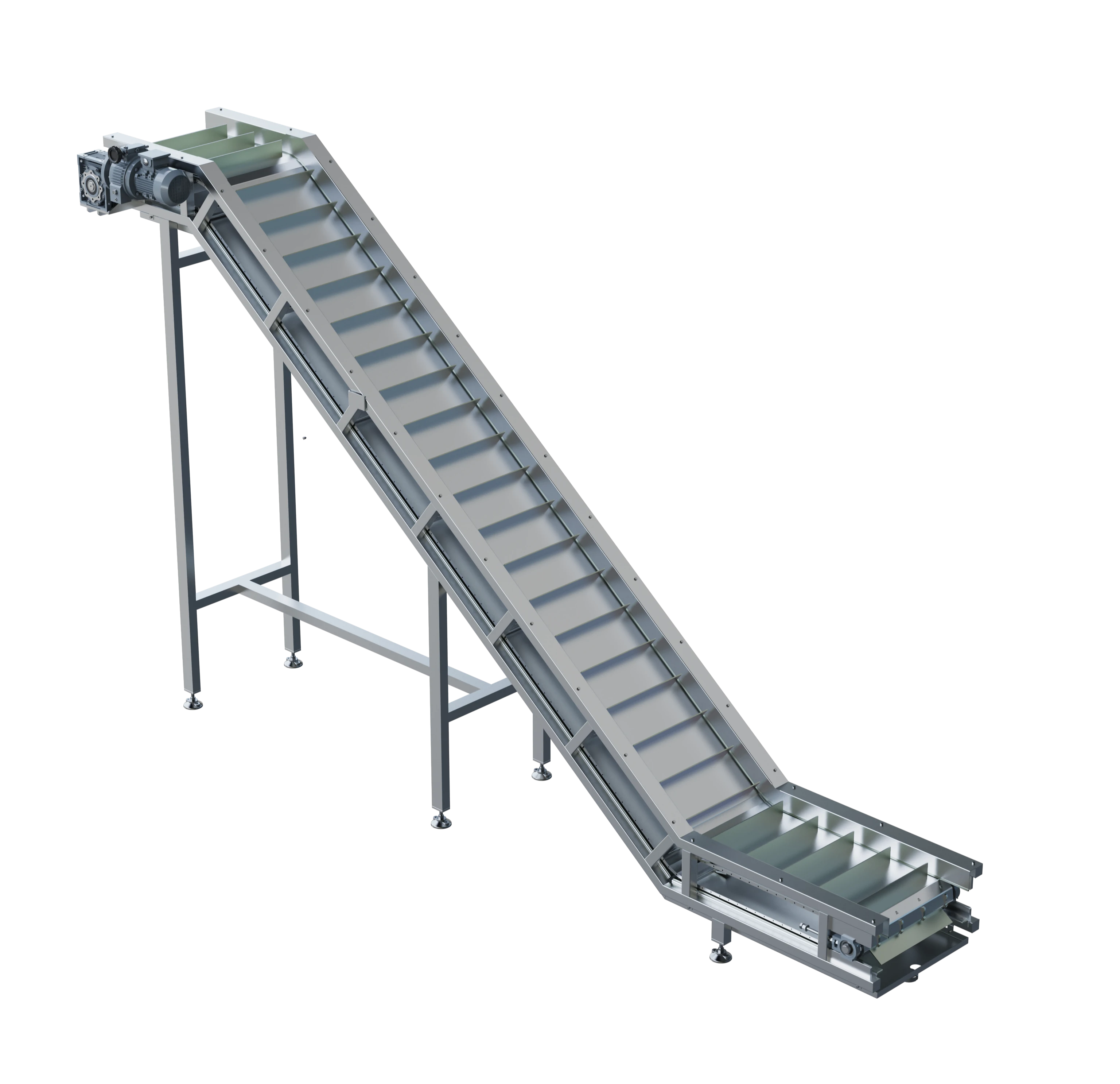

Fruit Elevator

The use of chain bucket and scraper elevators to lift and transport raw fruits from the bottom to the next production stage, suitable for the lifting and conveying of all kinds of fruits.

Technical parameters

Model

Capacity(t/h)

Power(kW)

Material

TW3A5

5

1.5

SUS304 S.S

TW3A10

10

2.2

Sorting machine

24097163

Suitable for fruit picking and conveying.

Technical parameters

Model	TW1B5	TW1B10	TW1B15	TW1B25
Throughput (t/h)	5	10	15	25
Power(kw)	1.5	2.2	4	5.5
Dimensions(mm)	4000×900×1400	4000×1100×1400	4000×1400×1400	5000×1600×1400

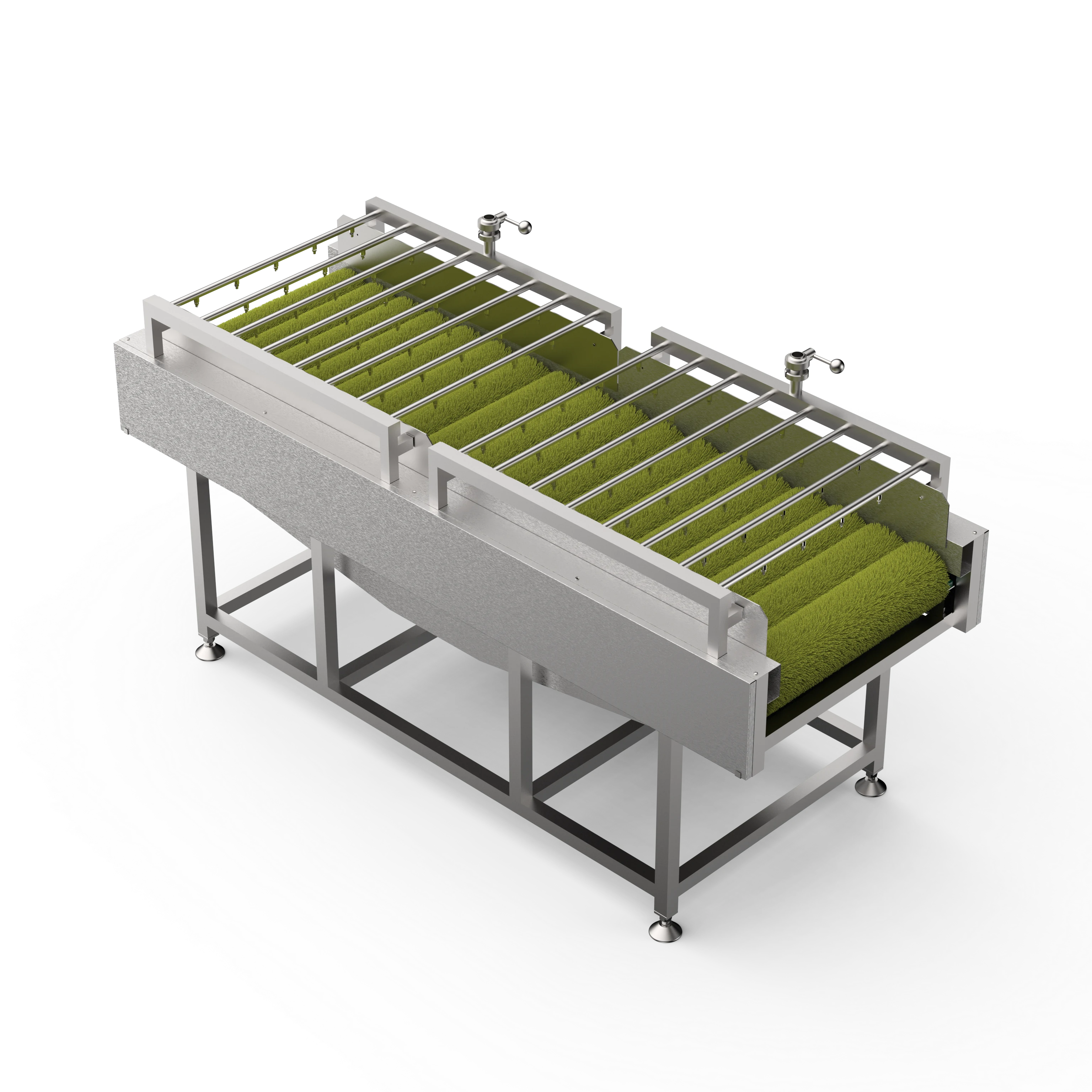

Fruit Brusher

52019834

It is suitable for brushing the surface of fruits (peaches, apples, pears, etc.) to achieve the purpose of cleaning fruits.

Technical parameters

Model	TW3D5	TW3D10	TW3D15	TW3D25
Throughput (t/h)	5	10	20	25
Power (kw).	2.2	4	5.5	4
Dimensions(mm)	2700×1000×1200	3500×1200×1200	4800×1500×1200	3500×1600×1200

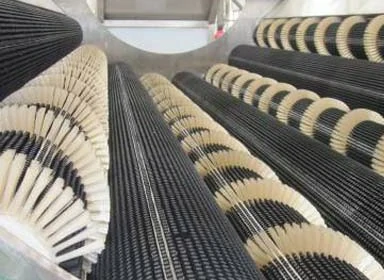

Brush peeling machine

87032591

Rack support and lift side panels	Stainless steel SUS304 material
Dimensions (mm)	4200×1600×1800
Diameter of planting horsetail brown hair roller (mm)	132
Bristle diameter (mm)	0.15
Fruit washer configuration	Spray cleaning device
Power(kW)	2.2
