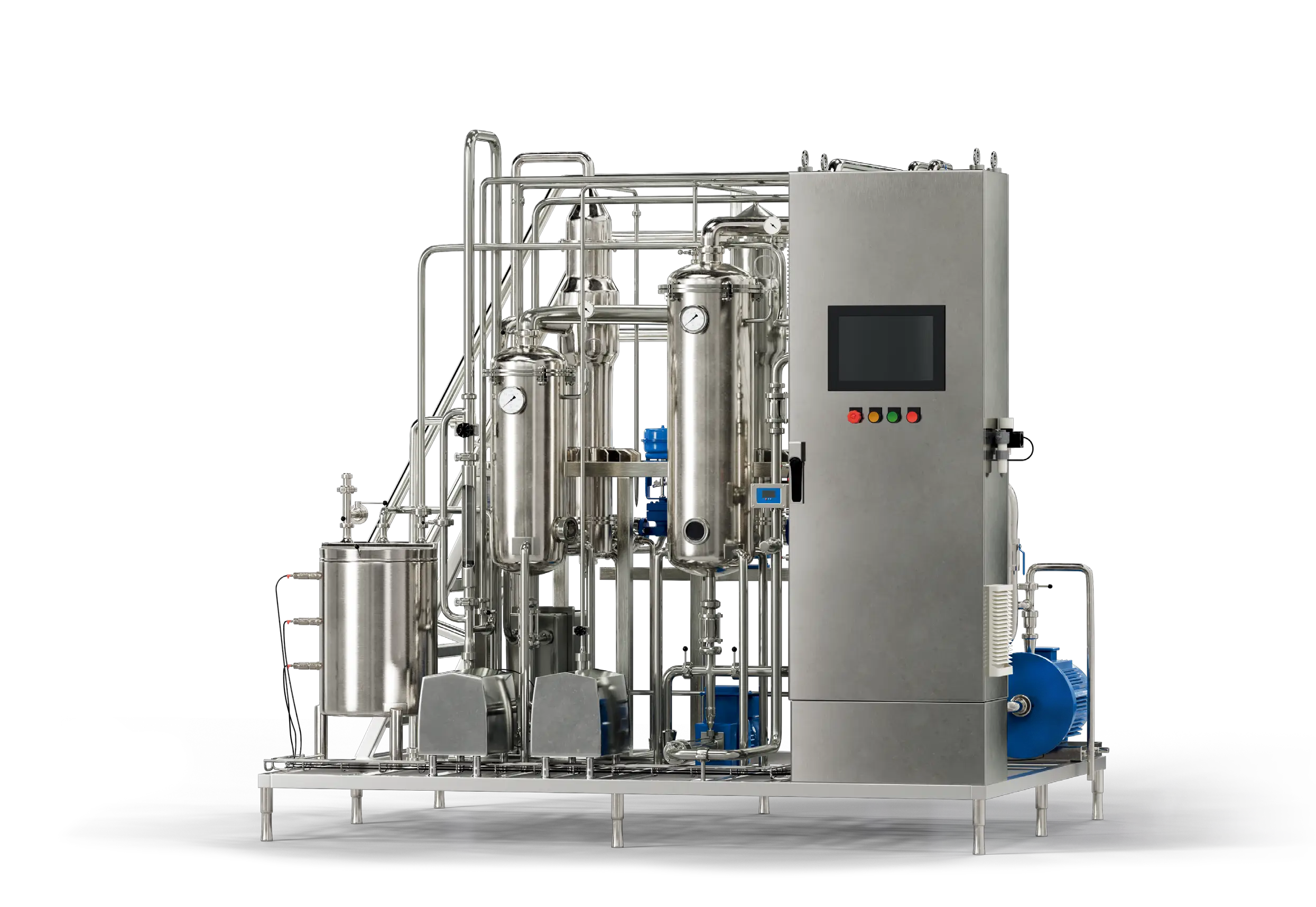

It is suitable for low temperature concentration in industries such as milk, juice, glucose, starch, xylose, pharmaceuticals, chemicals, bioengineering, environmental protection engineering, and waste liquid recycling.
|
Maximum rated evaporation capacity |
35L/h (in terms of water) |
|
Installed power |
5KW |
|
Feed temperature |
Normal temperature 25℃ |
|
Steam consumption |
21KG/h, steam inlet pressure not less than 3bar |
|
Water pressure |
Not less than 2bar |
|
Single effect heating area |
0.23M² |
|
Second effect heating area |
0.74M² |
|
First effect evaporation temperature |
75℃ (adjustable) |
|
Second effect evaporation temperature |
~50℃ |
|
Heating tube |
￠19MM, tube length 1M |
|
size |
2750*2100*2550MM(length*width*height) |
