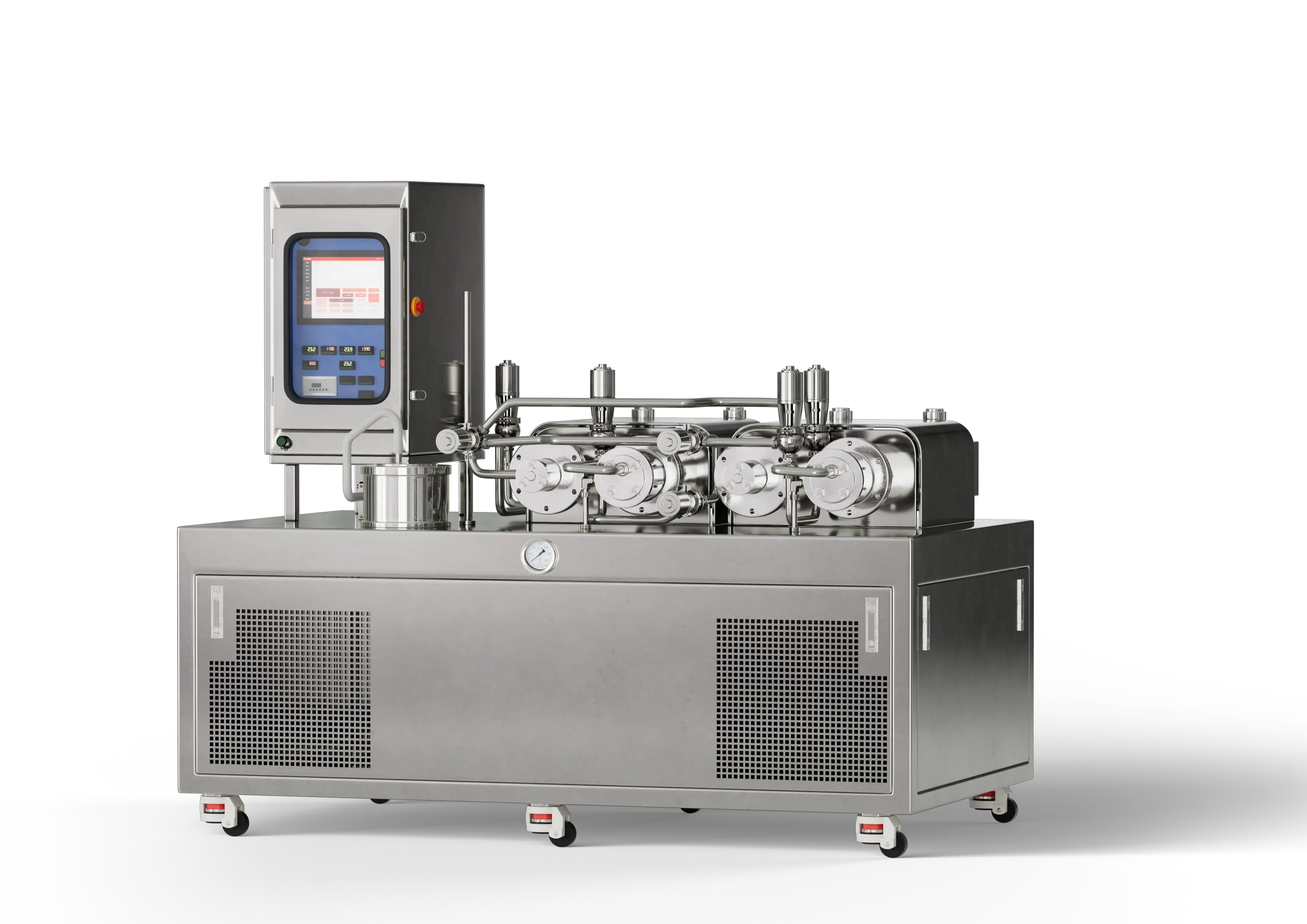

PT-SS Mini UHT Scraper Sterilizer

The PT-SS Series Experimental UHT Scraper Heat Exchanger fully simulates the industrial scraper heat exchanger production. The equipment includes a heating chamber and a cooling chamber, which can be a single or multi-chamber structure. The heating product temperature can reach up to 150°C. The system can provide superheated water for sterilizing the filling loop. The scraper chamber and scraper surfaces are chrome-plated, and the components in contact with the product are made of 316 stainless steel. The gasket and sealing materials are made of fluororubber. The piping connections use DIN sanitary fittings.

Contact Us
Product Features

▪ Modular design to meet different customer requirements.
▪ No steam required, only tap water and electricity needed.
▪ Minimum capacity of 5 L/H, maximum capacity customizable according to customer requirements.
▪ Built-in CIP and SIP functions.
▪ Heating temperature up to 150°C, cooling can reach below 5°C.
▪ Capable of online homogenization.

Technical Parameters

86734905

Standard Capacity	Minimum 5L/H, maximum capacity customizable according to customer requirements
Single Chamber Size	41.5mm×496（L）mm;
Maximum Material Temperature	152℃
Maximum Pressure	10.0 bar
SIP Function	Available
CIP Function	Available
Box Dimensions	1650(H)mm×800mm(W)×1100mm(L)
Power Supply	3-phase power supply, 380V, with neutral and ground wires
Design Power	13KW
Overall Dimensions	1650（H）×1080（W）×1260（L）mm

System Characteristics
- Control

  The product is heated via a PID temperature-controlled hot water circulation system, which is equipped with a safety control valve. We also provide a precision-controlled cooling system, with the temperature preset in advance. The product pump features variable frequency control for adjusting flow rates. The hold-up tube can be customized according to customer requirements.
- Cleaning

  The system supports quick, convenient, and safe on-site cleaning. The operation is simple: just switch the control to CIP mode, and the product pump will function as a cleaning pump, operating at a flow rate of 400L/H. The CIP circulation and discharge actions are switched via a three-way valve. The three-way valve between the hopper and pump inlet allows for quick switching between water, product, or different samples.
- Application Scope

  Initial Ingredient/Formulation Research
  • Taste identification
  • Color evaluation
  • Stabilizer/Emulsifier performance testing
  • Sample preparation for customer giveaways.
  System External Devices
  The system requires only a three-phase power supply and tap water. The system includes both heating and cooling systems.
