PT-50DT Mini UHT Steam Injection Sterilizer

Technical Parameters

Laboratory & Pilot Plant

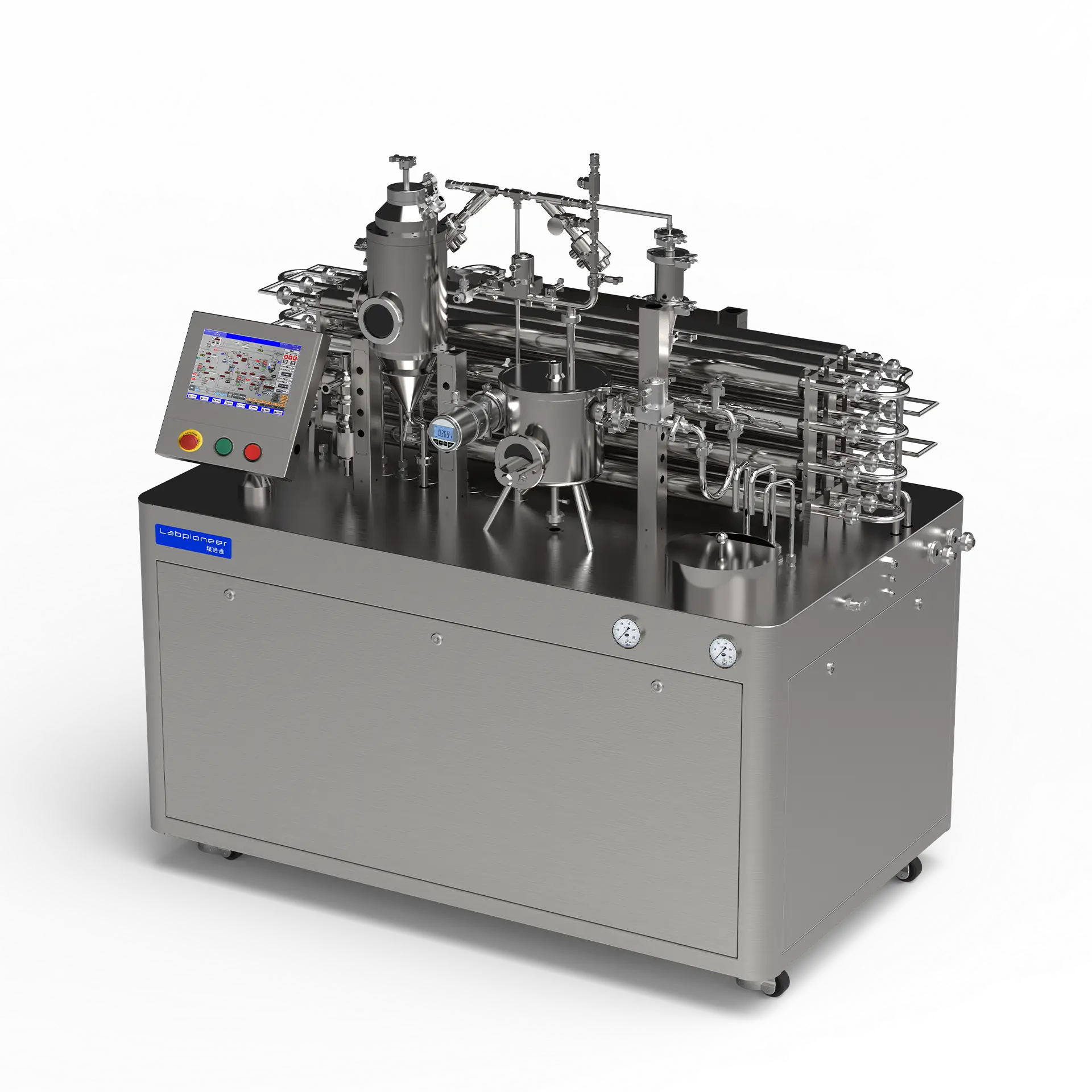

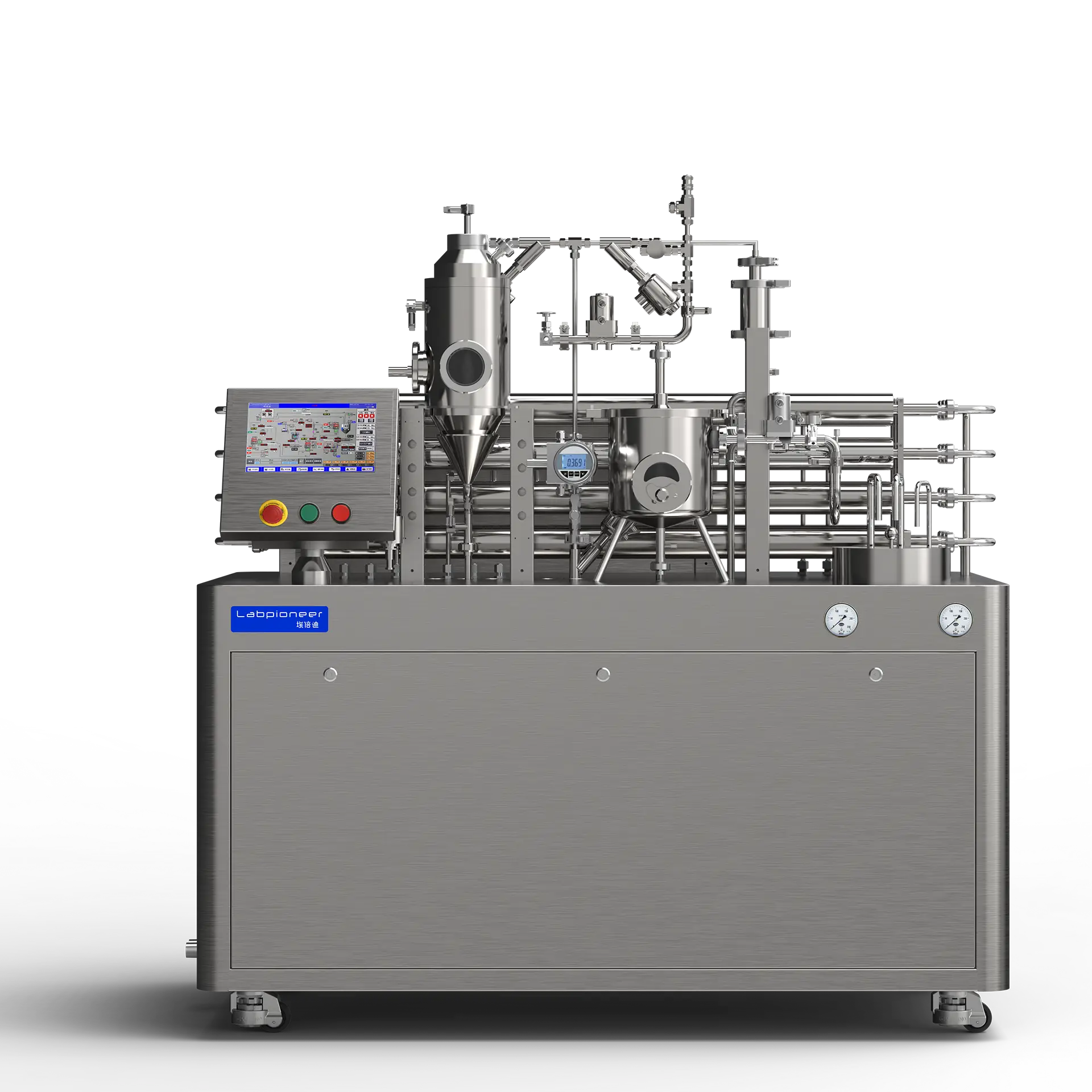

PT-50DT Mini UHT Steam Injection Sterilizer

The DSI Steam Injection (Infusion) Sterilizer offers both direct and indirect heating modes, with the maximum sterilization temperature reaching up to 150°C. The panel control allows for easy and quick switching between the two modes. The indirect heat exchange mode offers options of tubular, plate, and tube-plate hybrid configurations. Therefore, this equipment is widely applicable to various fluid products and materials with a certain viscosity.

Contact Us

Technical Parameters

64730928

Standard Capacity	30L/H (Flow rate adjustable from 5-40L)
Sterilization Temperature	Up to 150°C, adjustable
Sterilization Time	Configured according to customer requirements
Maximum Pressure	10.0bar
Vacuum level	400mbar
SIP Function	Available
CIP Function	Available
Online Filling	Optional
Online Homogenization Function	Optional (pre-homogenization/homogenizer)
Outlet Temperature	Adjustable
Hold-up Tube	Standard 5S/10S/30S
Material	SUS316 stainless steel
Data Software	Available
Power Supply	3-phase power supply, 380V, with neutral and ground wires
Design Power	12kw
Tap Water Requirements	Pressure ≥ 2 bar, Flow rate ≥ 500L/H
Overall Dimensions	1750(H)1000(W)1200(L)mm
