According to the different types of fruits and vegetables, the juice extractor is divided into belt extractor, cup extractor, air bag extractor, and spiral extractor.
Developed with advanced Italian technology, this new belt-type juice extraction system is widely used for processing apples, pears, pineapples, oranges, and various other fruits and vegetables, as well as for vegetable pressing and dehydration. The system features reliable quality, high automation performance, and a juice yield of up to 78%-82%, reaching international advanced standards. It can fully replace imported equipment. Production capacity: 3–20 tons/hour.
|
Model |
TBP-05 |
TBP-10 |
TBP-20 |
|
Capacity (t/h) |
5 |
10 |
15-20 |
|
Width of filter belt (mm) |
1200 |
1750 |
2500 |
|
Power(kW) |
4.0 |
5.0 |
7.5 |
|
Dimensions(mm) |
4500*1800*2200 |
4600*2300*2350 |
5000*3280*2450 |
|
Weight (kg) |
4200 |
5800 |
7500 |
|
Compressed Air |
0.8mpa 0.6m3/min |
||

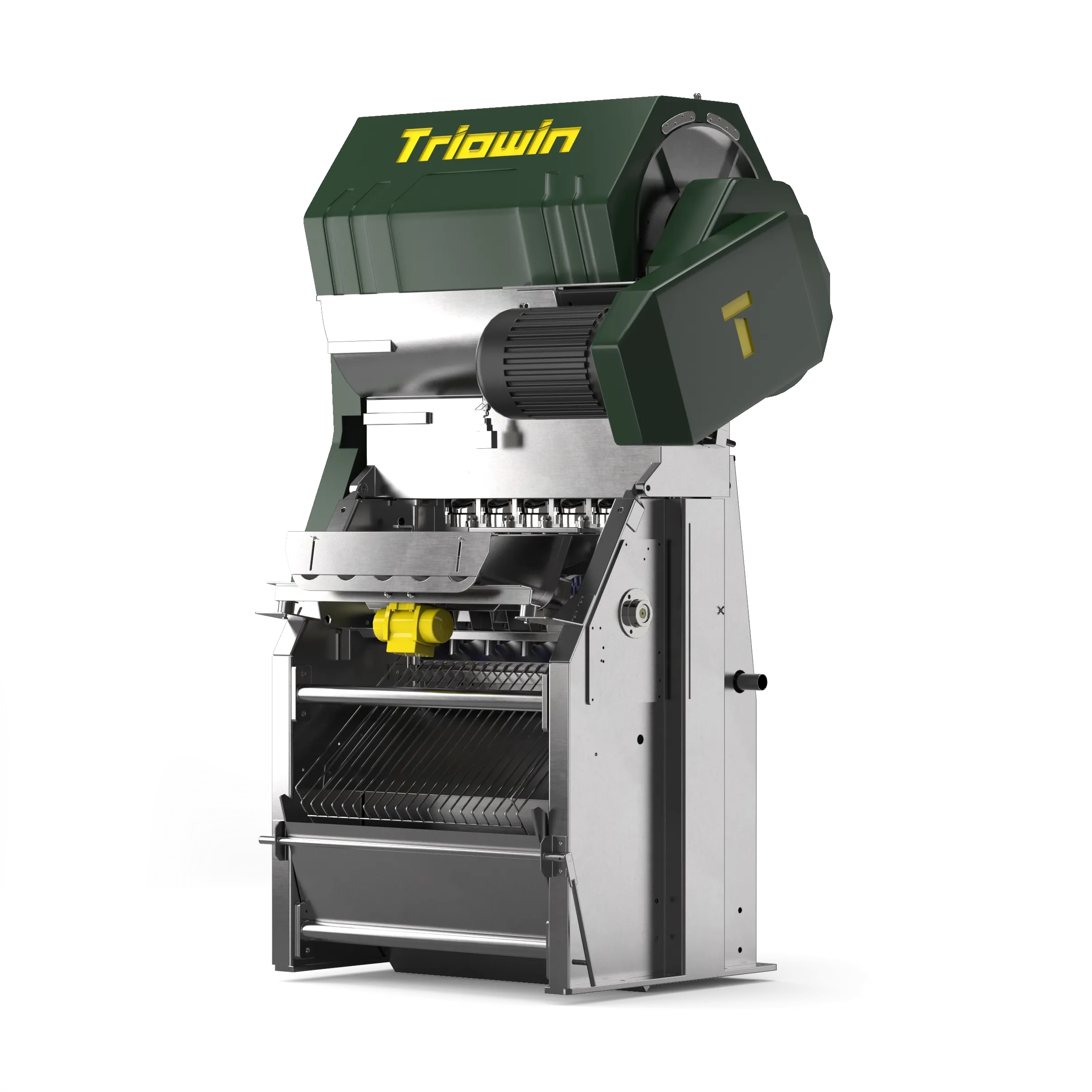

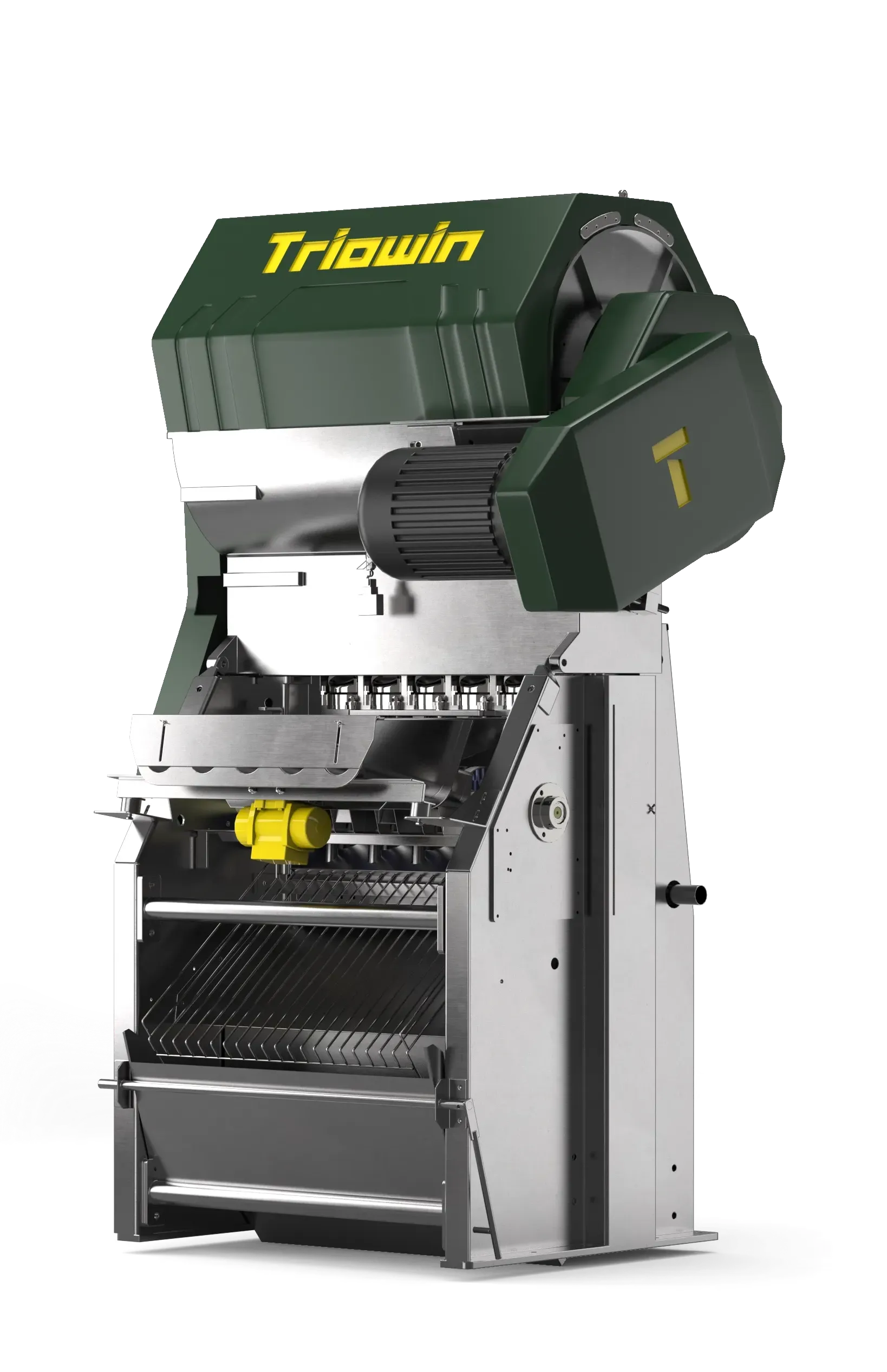

Together with Italy SPECIALE Company, Triowin has developed the first citrus whole-fruit cup extractor in China. The patented design guarantees a high juice yield, a wide range of usability (e.g. citrus, orange, lemon and pomelo), perfect separation of juice, pulp and essential oils, low operating costs, simple operation and easy maintenance.
|
Output(kg/h) |
3000 |
|
Power(kw) |
11.2 |
|
Gross weight(kg) |
2000 |
|
Dimensions(mm) |
1850x1200x2650 |
|
Feeding system (pcs) |
5 |
|
Capacity(per minute) |
TWE40-2 and TWE40-3 process 500 pieces, TWE40-4 process 375 pieces |
|
Fruit Size |
Diameters 60mm to 80mm are optimal |
|
Water consumption (l/h) |
1000 |

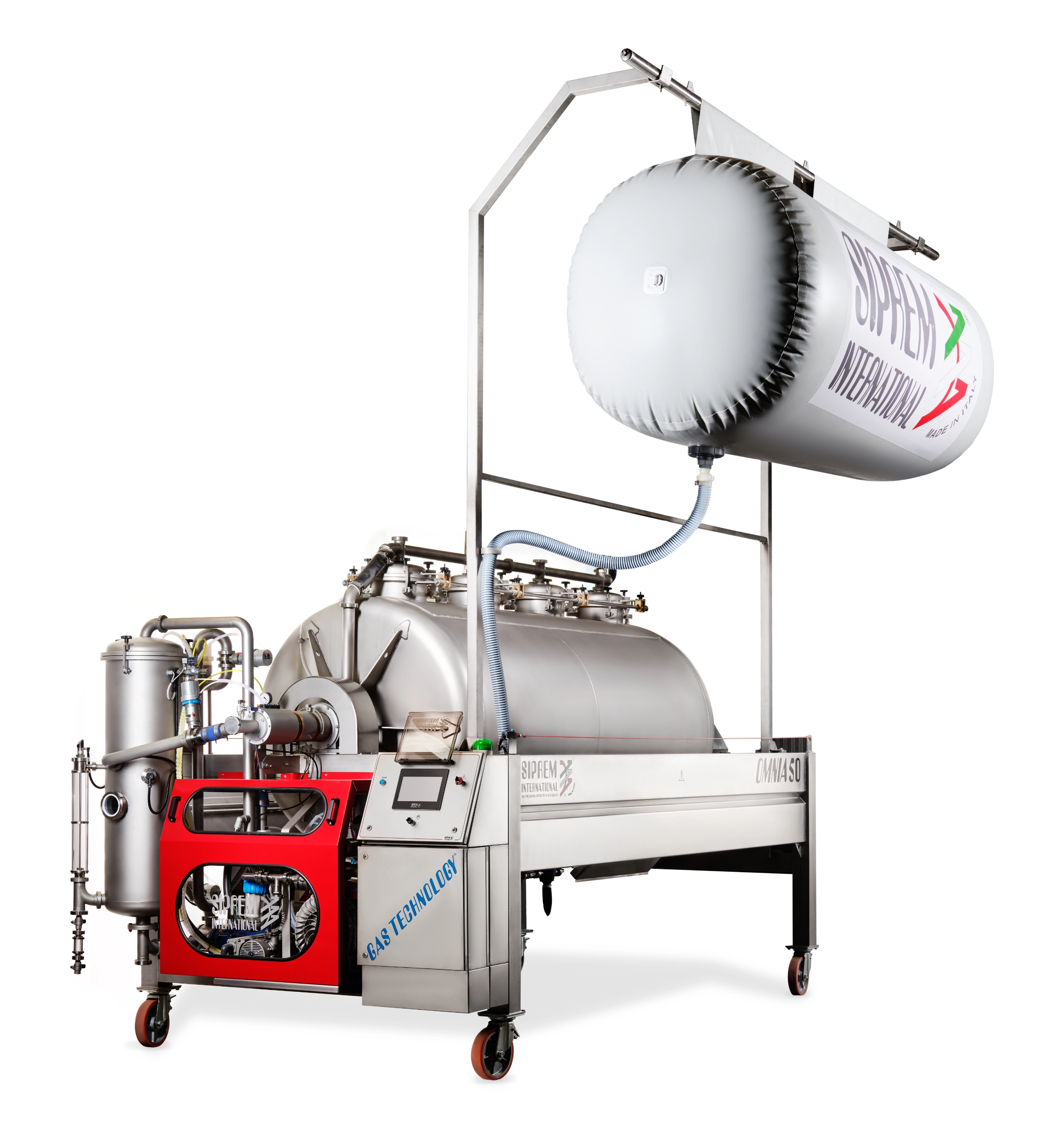

The vacuum airbag extractor is mainly used for extracting juice from berries (such as grapes, blueberries, strawberries, etc.). It can be equipped with an inert gas protection device, and the pressing process is completely isolated from oxygen to prevent oxidation, making it advanced equipment for obtaining high-quality juice. The main machine is entirely made of 304 stainless steel, and the whole machine can be controlled by the PLC intelligent control system, allowing free switching between automatic and manual modes.
|
Model |
VS35 |
VS50 |
VS80 |
VS150 |
VS250 |
VS360 |
VS405 |
VS505 |
|
Pressing Chamber Volume (10 hl) |
35 |
49 |
76 |
150 |
250 |
360 |
405 |
505 |
|
Crushing capacity (tons/time) |
7-8 |
9-11 |
15-18 |
30-34 |
55-60 |
70-80 |
80-90 |
95-110 |
|
String capacity (tons/time) |
2.5 |
3.5 |
5.5 |
10.5 |
17.5 |
25.2 |
28.3 |
36 |
|
Leather residue production capacity (tons/time) |
12-16 |
13-19 |
19-28 |
40-52 |
60-85 |
87-122 |
100-140 |
127-177 |
|
Max. motor power (kW) |
3.0 |
3.5 |
6.0 |
10.0 |
14.0 |
22.0 |
25.0 |
25.0 |
|
Model |
Capacity (T/H) |
power |
Dimensions |
|
LZ-0.5 |
0.1-0.5 |
1.1 |
800*350*750 |
|
LZ-1.5 |
0.5-1.5 |
4 |
1560*450*1400 |
|
LZ-2.5 |
1.0-2.5 |
11 |
2200*600*1580 |
