Telescopic fillers are fully automatic rotary volumetric machines, designed for filling tinplate or glass containers. The structure is made entirely of AISI 304L steel, unlike the parts in contact with the product, which are made of AISI 316L.
|
型号 (Model) |
伸缩头数量 (Number of Telescopes) |
灌装盘规格 (Filling Plate Ø) |
容器尺寸 (Container Size) |
速度 (Capacity) |
|
RVA 20 |
20 |
1000 |
Ø 73 & Ø 99 |
80/120 CPM/FPM |
|
RVA 36 |
36 |
1500 |
Ø 73 & Ø 99 |
250/300 CPM/FPM |
|
RVA 21 |
21 |
1500 |
Ø 153 |
70 CPM/FPM |
|
RVA 48 |
48 |
2000 |
Ø 73 & Ø 99 |
550/400 CPM/FPM |
|
RVA 30 |
30 |
2000 |
Ø 153 |
110 CPM/FPM |
|
RVAR 80 |
80 |
2500 |
Ø 73 |
900 CPM/FPM |
|
RVAR 60 |
60 |
2500 |
Ø 99 & Ø 73 |
600 CPM/FPM |
|

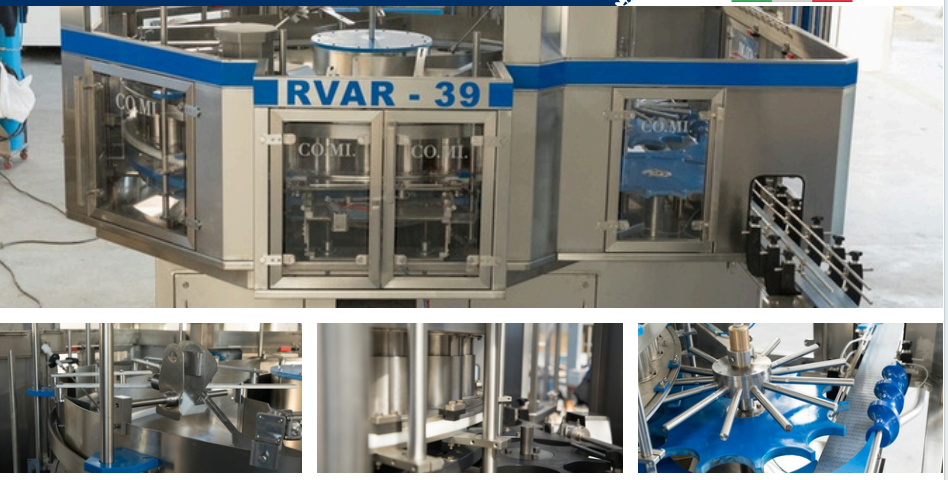

RVAR 39 |
39 |
2500 |
Ø 153 |
180 CPM/FPM |
|
RVAR 100 |
100 |
3000 |
Ø 73 |
1200 CPM/FPM |
|
RVAR 48 |
48 |
3000 |
Ø 153 |
250 CPM/FPM |
Telescopic fillers are fully automatic rotary volumetric machines, designed for filling tinplate or glass containers. The structure is made entirely of AISI 304L steel, unlike the parts in contact with the product, which are made of AISI 316L. They can be traditional with filling or with a vibrating system for products that are more complicated to stuff.
With semi-telescopic fillers it is possible to process different products by means of volumetric dosing, such as: legumes, vegetables, fruit or even chunks, pasta cucumbers, wheat and similar products.
|
型号 (Model) |
伸缩头数量 (Number of Telescopes) |
灌装盘规格 (Filling Plate Ø) |
容器尺寸 (Container Size) |
速度 (Capacity) |
|

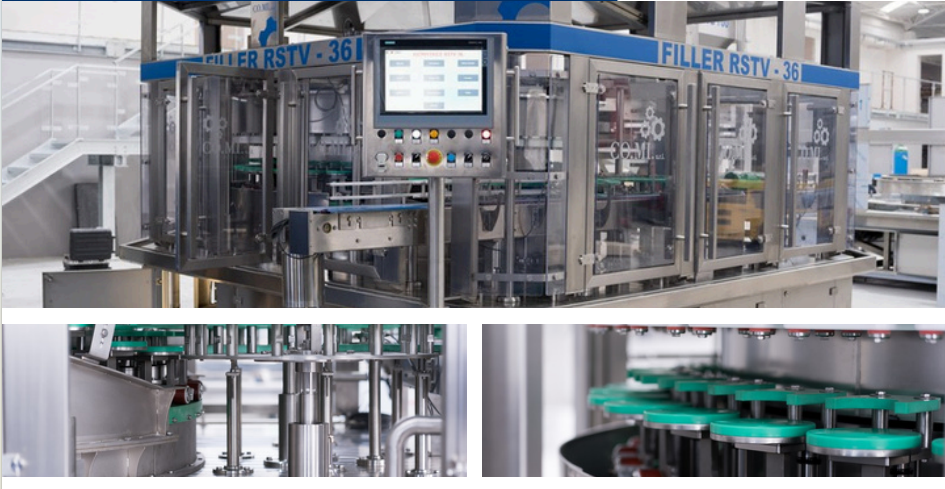

RSTV 36 |
36 |
2000 |
Ø MAX 120 H 220 |
da/from 100 a/to 350 CPM/FPM |
|
RSTV 42 |
42 |
2500 |
Ø MAX 120 H 220 |
da/from 100 a/to 420 CPM/FPM |
|
RSTV 50 |
50 |
3000 |
Ø MAX 120 H 220 |
da/from 100 a/to 500 CPM/FPM |
|
型号 (Model) |
伸缩头数量 (Number of Telescopes) |
灌装盘规格 (Filling Plate Ø) |
容器尺寸 (Container Size) |
速度 (Capacity) |
|
RTA 60 |
60 |
2000 |
Ø 73 |
550 CPM/FPM |
|
RTA 72 |
72 |
3000 |
Ø 73 & Ø 99 |
700/750 CPM/FPM |
|
RTA 80 |
80 |
2500 |
Ø 73 |
900 CPM/FPM |
|
RTA 100 |
100 |
3000 |
Ø 73 |
1000 CPM/FPM |
|
RTA 120 |
120 |
3500 |
Ø 73 |
1200 CPM/FPM |
