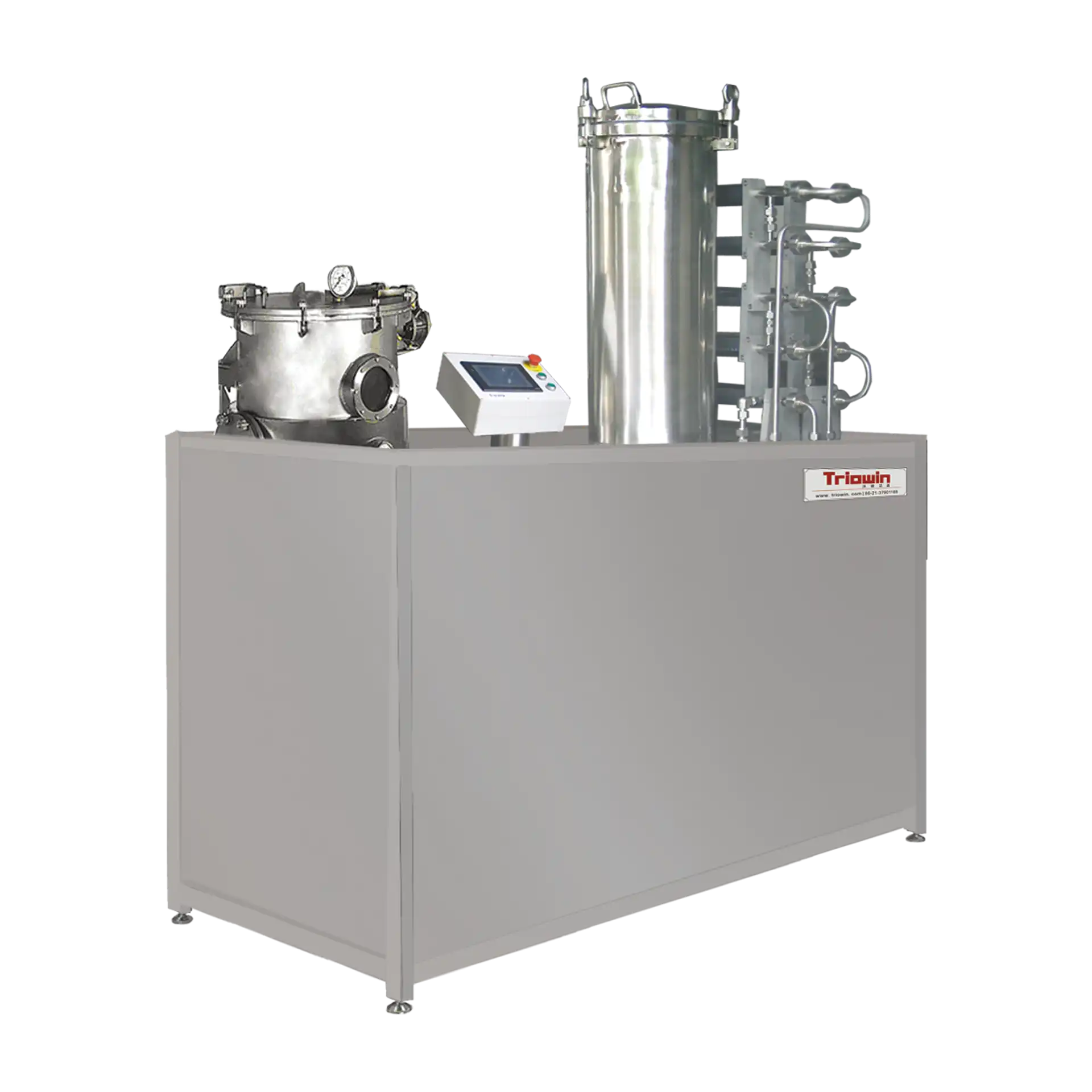

The TW-BD25 is a floor-standing batch processor that can extract a variety of solid or liquid materials. It is particularly suitable for "leaching" edible oils and desolventizing the extracted solids and oil-water mixtures.
▪ Independent system/full functions
▪ Floor-standing frame
▪ Single extraction/desolventization tank
▪ Oil-water mixture tank
▪ Top condenser
▪ Solvent/water recovery tank
▪ Fully fireproof manufacturing
|
Batch processing capacity |
25kg |
|
Direct steam |
8kg/ hr |
|
Indirect steam |
4 bar |
|
Minimum extraction volume |
3L |
|
Extraction tank capacity |
100 L |
|
Condensation area |
3m2 |
|
Cooling medium |
water |
|
Steam consumption |
15kg/ hr , 10bar |
|
power supply |
380V/3ph/50Hz, 15kW |
|
size |
1.8m*1.95m*1.2m |
|
volume |
4.2m³ |
|
weight |
760kg |
